    • Flanged Wedge Gate Valve SG41

    DN

    50~1200 (2"~48")

    PN

    1.0~16.0 (Class150~2500)

    Temperature Range

    -59°C~650°C

    Connection

    Flanged

    Installation Direction

    Bidirectional

    Design

    GB/T12234, API609

    Face to Face

    GB/T12221, ASME B16.10

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T26480, ISO5028, API598, JB/T9092

    Body Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Disc Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Stem Materials

    420, 35CrMoA, F6a, F11, F304, F316, F321

    Seat Materials

    420, Stellite alloy, Hastelloy, Inconel, Monel

    Features & Benefits

    SG41 has compact structure, small flow coefficient, reliable sealing, light & flexible operation and long service life. Its sealing surface is made of stainlesss steel & cemented carbide, and the uppper seal is flexible graphite filler.

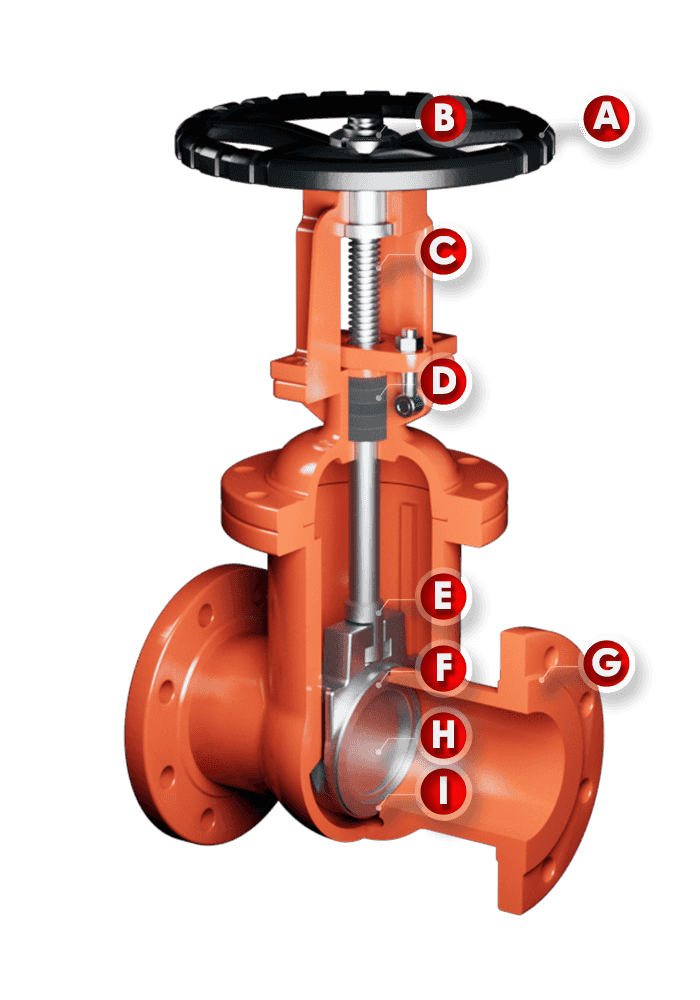

    Flanged Wedge Gate Valve SG41

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and steel can be selected by requirements.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    Reinforced graphite packing material can effectively enhance the sealing performance of the stem, reduce the openning & closing toque and make the operation more labor-saving.

    As the connection point connecting stem and disc, wear resistance and corrosion resistance are the primary factors in material selection.

    It is wedge-shaped and can be surfacing welding alloy steel.

    A variety of body materials can be selected. The body has a self-sealing structure, and its groove design plays the role of maintaining the disc, making the disc not easy to deform.

    The disc is made of pure metal with high temperature resistance, high processing precision, wear resistance, and the disc does not block the flow channel when fully opened.

    The hard metal-to-metal sealing seat can be applied to high temperature and high pressure medium. The seat can be surfacing welding alloy steel or other materials with high wear resistance and corrosion resistance.

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and steel can be selected by requirements.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    Reinforced graphite packing material can effectively enhance the sealing performance of the stem, reduce the openning & closing toque and make the operation more labor-saving.

    As the connection point connecting stem and disc, wear resistance and corrosion resistance are the primary factors in material selection.

    It is wedge-shaped and can be surfacing welding alloy steel.

    A variety of body materials can be selected. The body has a self-sealing structure, and its groove design plays the role of maintaining the disc, making the disc not easy to deform.

    The disc is made of pure metal with high temperature resistance, high processing precision, wear resistance, and the disc does not block the flow channel when fully opened.

    The hard metal-to-metal sealing seat can be applied to high temperature and high pressure medium. The seat can be surfacing welding alloy steel or other materials with high wear resistance and corrosion resistance.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    WCC0.50.50.2--29~425
    WC10.350.50.45~0.65-≤455
    WC50.5~0.90.6~10.9~1.2-≤565
    WC61~1.5-0.45~0.65-≤595
    WC92~2.75-0.9~1.2-≤595
    C54~6.5-0.45~0.65-≤650
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)
    CF317~218~120.5-≤425
    CF3M17~219~132~3-≤455
    32117~199~12-0.5≤540 (700)
    904L19~2124~26---165~600
    316Ti16~1810~14-0.7-165~600
    310S24~2619~22--≤850
    LCB-----46~345
    LCC-----46~345
    LC1-----59~345

    Dimensions

    Flanged Wedge Gate Valve SG41's Drawing

    GB/T 9113 PN16

    DNLDD1D2bfn-ΦdH
    502501651251021634-18310
    652701851451221838-18373
    802802001601382038-18435
    1003002201801582038-18445
    1253252502101882238-18570
    1503502852402122438-22630
    20040034029526826312-22735
    25045040535532030312-26969
    30050046041037830412-26976
    35055052047043834416-261120
    40060058052549036416-301452
    45065064058555040420-301541
    50070071565061044420-331880
    60080084077072548520-361874
    70090091084079540524-362083
    8001000102595090042524-392400
    900110011251050100044528-392950
    1000120012551170111546528-423245
