Research: Types of Gate Valves

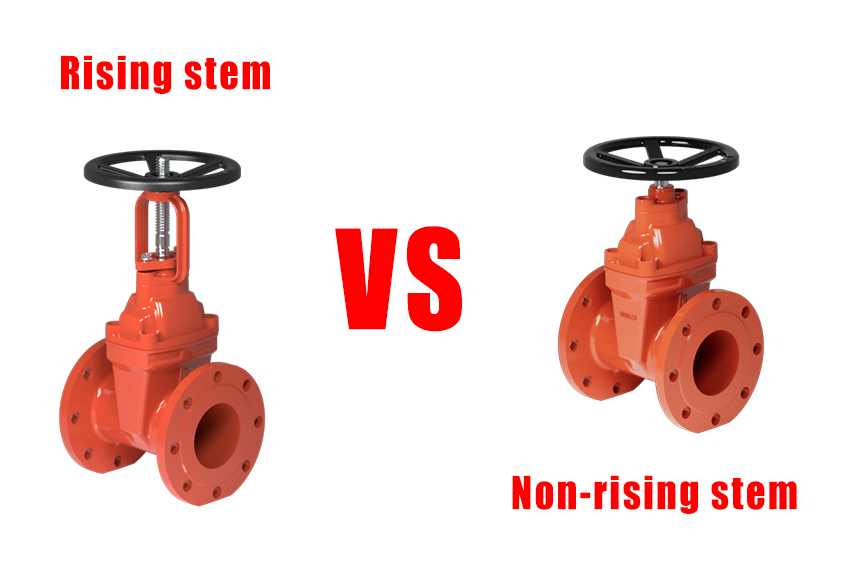

A gate valve is a device used to control the flow of fluid in a pipeline, mainly by raising or lowering the valve gate to achieve opening or closing. Depending on different structural forms, uses, and working principles, there are various types of gate valves. The common types of gate valves include:

1. Classified by Valve Body Structure:

• Straight-through Gate Valve: The valve body is designed in a straight line, and the fluid flows through in a linear path. This structure offers low flow resistance and is suitable for most common pipelines.
• Angle Gate Valve: The valve body is designed in an L-shape or angled form, suitable for applications where the fluid direction needs to be changed.
• Double Gate Valve: This type of valve has two gate plates and is commonly used for large-diameter pipelines, especially in high-pressure or bidirectional flow applications.

2. Classified by Valve Actuation Method:

• Manual Gate Valve: Operated by a handwheel or handle, suitable for smaller pipelines or simple control scenarios.
• Electric Gate Valve: Operated by an electric actuator, suitable for remote or automated control systems.
• Pneumatic Gate Valve: Actuated by compressed air, used in applications requiring quick opening/closing or automated control.
• Hydraulic Gate Valve: Operated by a hydraulic system, commonly used in high-pressure or high-load applications.

3. Classified by Gate Type:

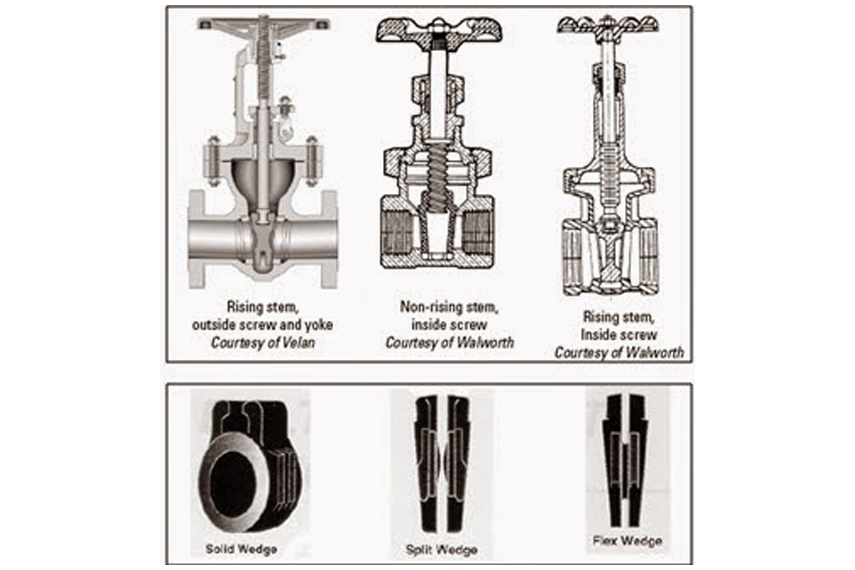

• Wedge Gate Valve: The gate is wedge-shaped, and sealing is achieved through the self-sealing property of the wedge structure. Typically used in high-pressure pipelines.
• Parallel Gate Valve: The gate is flat, and the valve opens and closes by raising and lowering the gate. Commonly used in low-pressure and medium-pressure applications.
• Double Gate Valve: As mentioned earlier, it is suitable for large-diameter pipelines and improves sealing performance and operation.

4. Classified by Sealing Type:

• Flexible Sealed Gate Valve: Uses flexible materials, such as rubber, for sealing, typically used in low-pressure and standard fluid applications.
• Hard Sealed Gate Valve: Uses hard materials (such as metal) for sealing, designed for high-temperature, high-pressure, and corrosive fluid applications.
• Soft Sealed Gate Valve: Uses elastic materials for sealing, usually offering better sealing performance and corrosion resistance.

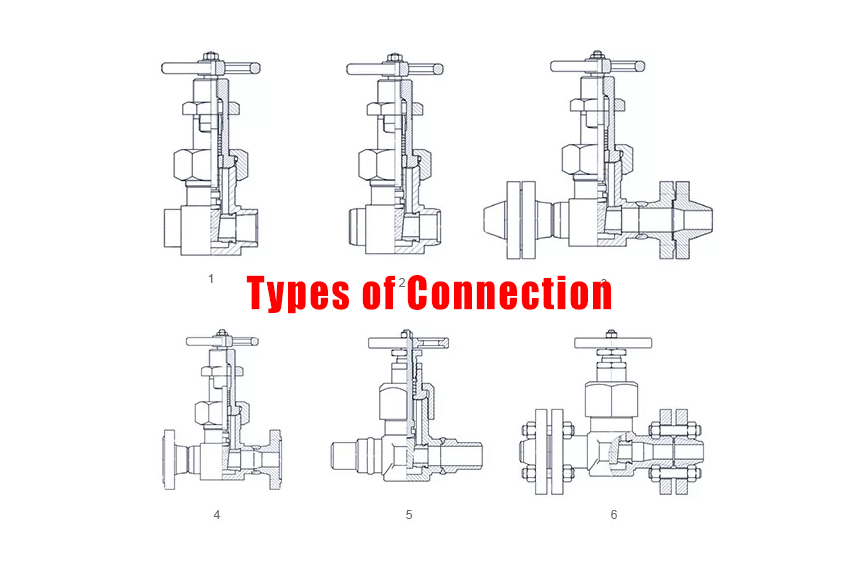

5. Classified by Connection Method:

• Flanged Gate Valve: Connected to the pipeline by flanges, commonly used in large pipeline systems, offering easy installation and maintenance.
• Threaded Gate Valve: Connected by threaded joints, suitable for small diameter, low-pressure pipelines.
• Welded Gate Valve: Connected by welding, used where high sealing is required, such as in oil, chemical, or high-pressure systems.
• Quick-Opening Gate Valve: Features a quick-opening design, often used for emergency shut-off applications.

6. Classified by Working Pressure:

• Low-Pressure Gate Valve: Used in pipelines with low pressure, typically for systems with a working pressure of ≤10 MPa.
• Medium-Pressure Gate Valve: Used in pipelines with medium pressure, generally for systems with a working pressure between 10 MPa and 50 MPa.
• High-Pressure Gate Valve: Used in pipelines with high pressure, typically for systems with a working pressure above 50 MPa, often used in the chemical, oil, and gas industries.

7. Classified by Application Field:

• Industrial Gate Valve: Widely used in industries like petroleum, chemicals, power generation, and metallurgy.
• Water Treatment Gate Valve: Used in water plants, sewage treatment plants, and similar applications for controlling the flow of water.
• Fire-Fighting Gate Valve: Used in fire protection systems to ensure the water supply for firefighting.
• Natural Gas Gate Valve: Specifically designed for natural gas pipelines, with better sealing and corrosion resistance.

8. Classified by Material:

• Cast Iron Gate Valve: Suitable for low-pressure applications, often used in water supply and drainage systems.
• Steel Gate Valve: Suitable for medium and high-pressure applications, commonly used in the petroleum, natural gas, and other industries.
• Stainless Steel Gate Valve: Suitable for corrosive media, offering excellent corrosion resistance.
• Alloy Steel Gate Valve: Used in high-temperature and high-pressure applications, offering resistance to high temperatures and corrosion.

Different types of gate valves are suitable for different working conditions and industrial requirements. Therefore, selecting the appropriate type of gate valve should be based on the specific operating environment and requirements.
