Research: Gate Valves vs Globe Valves

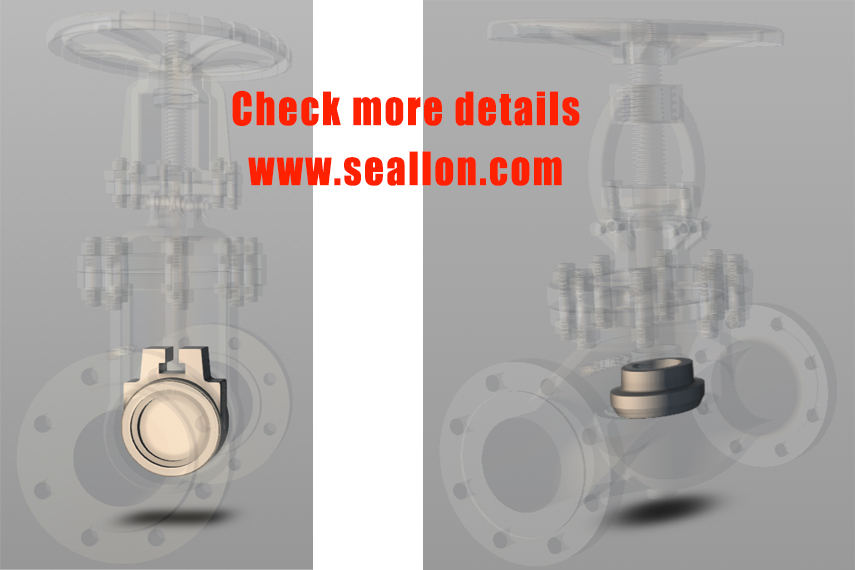

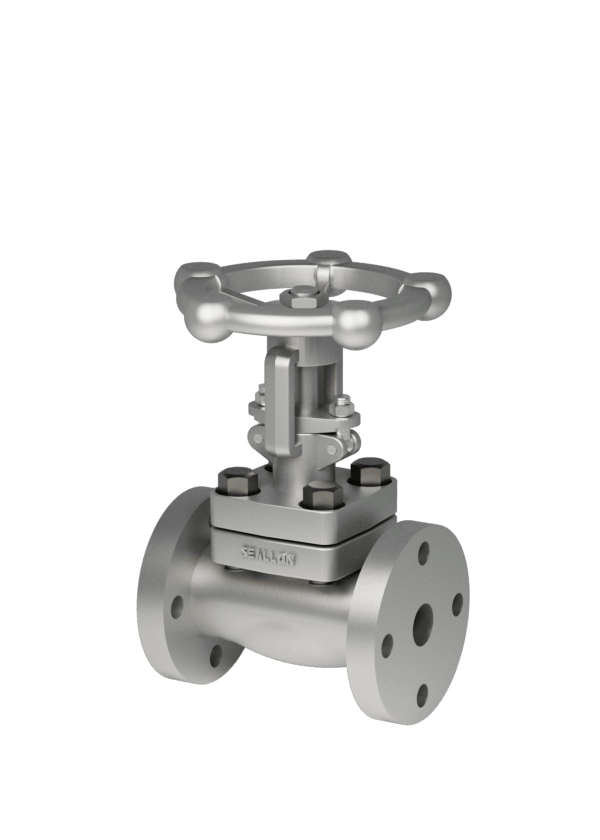

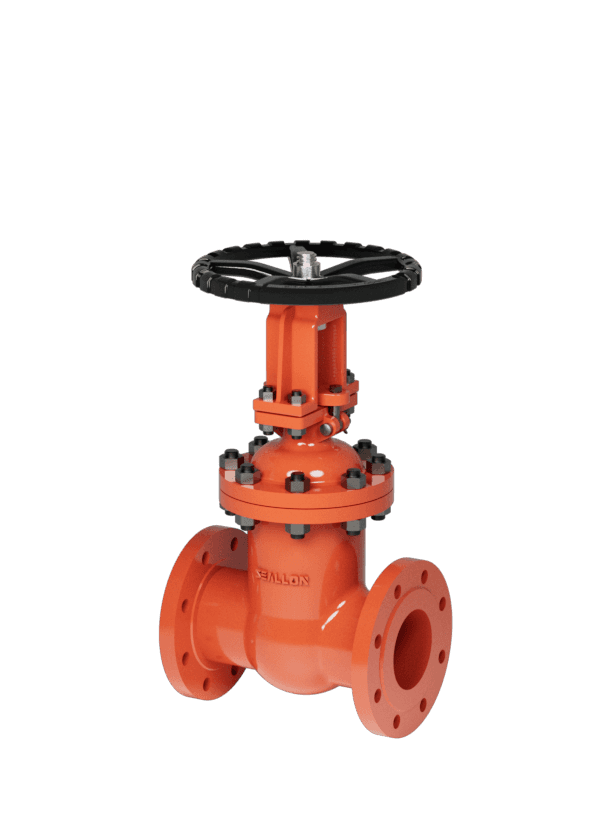

🔍 What Is a Gate Valve?

A gate valve is a linear motion valve used primarily for on/off control. It operates by raising or lowering a gate (wedge) inside the valve body to allow or block flow.

• Flow Characteristic: Full bore, minimal pressure drop when fully open.

• Not for throttling: Poor control at partial open positions; can cause seat erosion.

• Typical End Connections: Flanged, threaded, or welded.

• Common Materials: Cast iron, carbon steel, stainless steel, bronze.

Best for:

• Full flow or complete shut-off

• Applications requiring minimal pressure loss

• Water, steam, oil, gas, or slurries

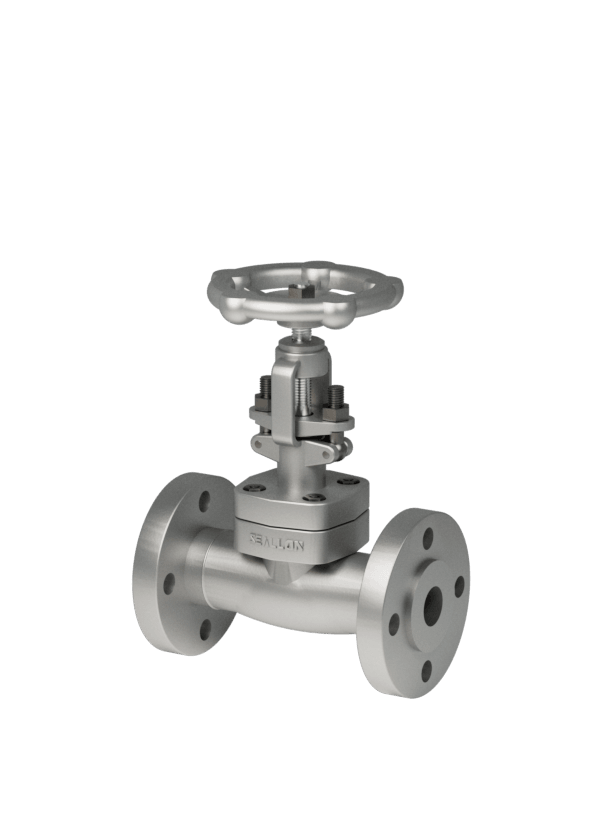

🔍 What Is a Globe Valve?

A globe valve is a linear motion valve designed for precise flow regulation. It uses a plug or disc that moves perpendicular to the seat to control flow.

• Flow Characteristic: Good throttling and flow control capability.

• Higher pressure drop compared to gate valves due to the S-shaped flow path.

• Common Configurations: T-pattern, Y-pattern, and angle type.

• Typical End Connections: Flanged or socket weld.

• Common Materials: Stainless steel, forged steel, cast iron, brass.

Best for:

• Flow modulation and precise throttling

• Frequent operation (open/close cycles)

• High-pressure steam, air, or chemical services

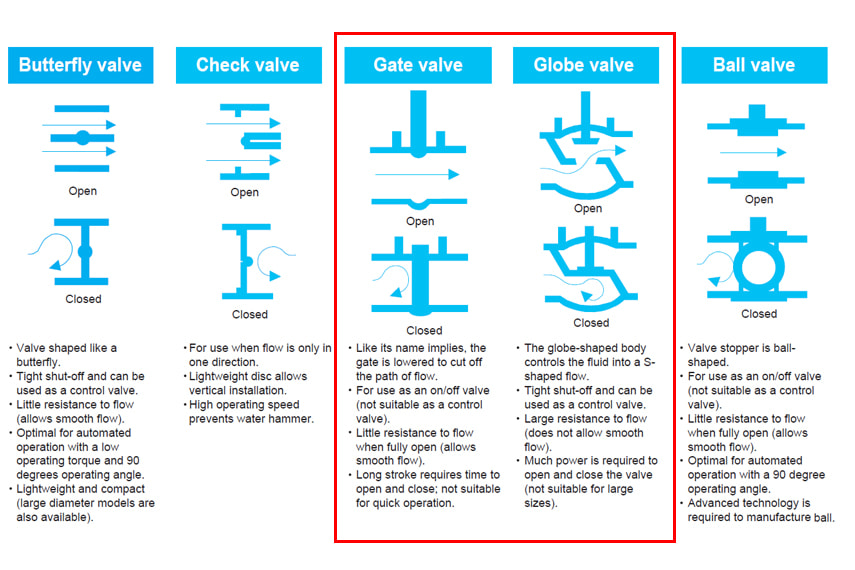

⚙️ Gate Valve vs Globe Valve – Key Differences

🏭 Common Applications by Industry

✅ Gate Valve Applications:

• Water distribution systems

• Oil & gas pipelines

• Mining and slurry systems

• Power plant isolation

✅ Globe Valve Applications:

• Boiler feed systems

• Cooling water regulation

• Fuel oil control

• Steam and air systems

💡 Selection Tips

• Choose gate valves when you need full bore and minimal pressure drop in a rarely operated valve.

• Choose globe valves when frequent operation or precise flow regulation is needed.

• Consider actuation needs — both can be automated with electric or pneumatic actuators for remote operation.
