    • UPVC Butterfly Valve SB71-V

    DN

    25~1200 (1"~48")

    PN

    0.6~1.6 (Class150, 5K, 10K)

    Temperature Range

    -20℃~200℃

    Connection

    Wafer, Flanged

    Installation Direction

    Bidirectional

    Design

    GB/T 50082

    Face to Face

    GB/T 12235

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501

    Top Connection

    ISO5211

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    FRPP, PPH, UPVC, CPVC, PVDF

    Disc Materials

    FRPP, PPH, UPVC, CPVC, PVDF

    Stem Materials

    45#, 410, 416, 431, 304, 316

    Seat Materials

    NR, EPDM, Viton

    Features & Benefits

    SB71-V is a kind of UPVC (Unplasticized Polyvinyl Chloride) butterfly valve, which is commonly used in a variety of industrial and municipal applications, particularly in industries like water treatment, chemicals, irrigation, and HVAC systems. UPVC is known for its corrosion resistance, light weight, and cost-effectiveness, making it an ideal material for certain applications.

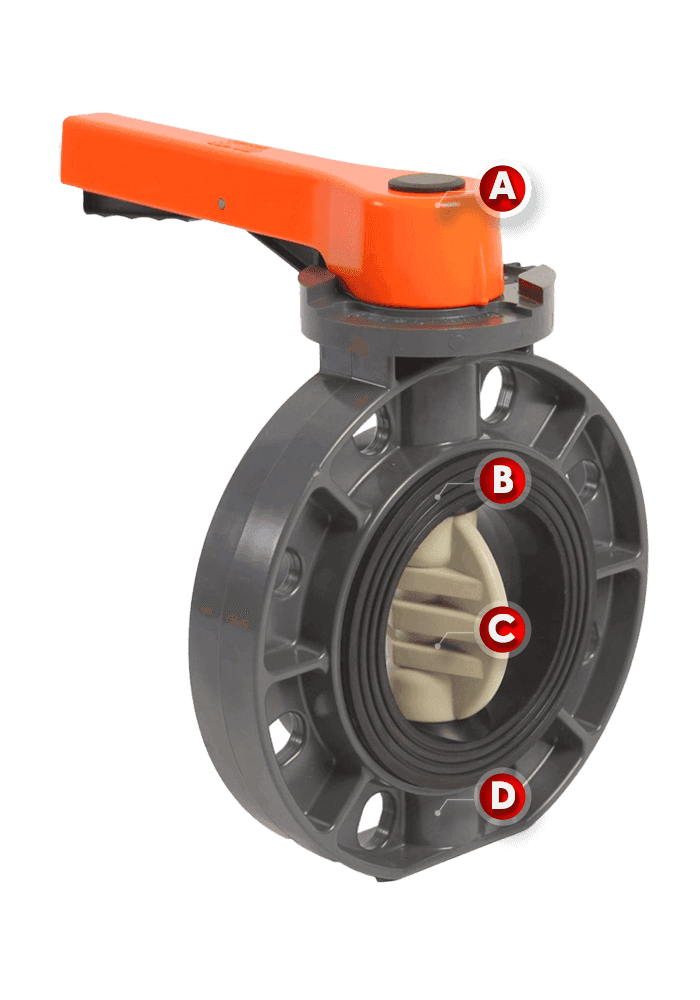

    UPVC Butterfly Valve SB71-V

    These valves typically have a low operating torque, which makes them easier to operate and reduces the strain on the actuator and valve components.

    The disc is engineered to resist corrosion and abrasion, particularly in chemical or water treatment applications, helping maintain valve integrity and longevity.

    The seat is usually made from soft elastomers such as EPDM (Ethylene Propylene Diene Monomer), NB (Natural Rubber), or Viton, which is commonly used for water or neutral liquids.

    The UPVC body is lightweight, making it easier to install and transport. It offers excellent mechanical strength for typical pressure ratings in water treatment, irrigation, and other low-pressure applications.

    These valves typically have a low operating torque, which makes them easier to operate and reduces the strain on the actuator and valve components.

    The disc is engineered to resist corrosion and abrasion, particularly in chemical or water treatment applications, helping maintain valve integrity and longevity.

    The seat is usually made from soft elastomers such as EPDM (Ethylene Propylene Diene Monomer), NB (Natural Rubber), or Viton, which is commonly used for water or neutral liquids.

    The UPVC body is lightweight, making it easier to install and transport. It offers excellent mechanical strength for typical pressure ratings in water treatment, irrigation, and other low-pressure applications.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NRHigh elasticity-2085-5~70
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    FPM (Viton)Chemical and most oils resistance, (except ketones & esters)-20200-5~150

    Dimensions

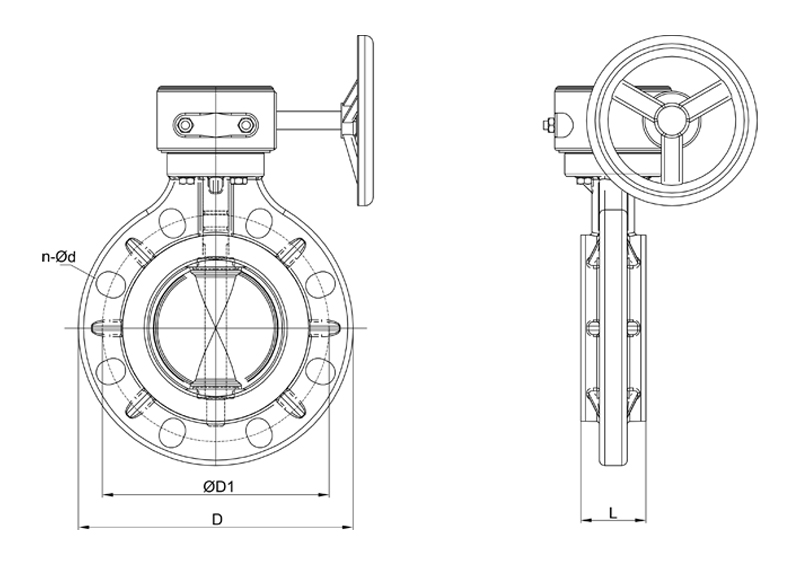

    UPVC Butterfly Valve SB71-V's Drawing
    DNLDD1n-Φd
    2537851254-14
    32371001254-18
    40381101454-18
    50401251604-18
    65451451808-18
    80461601958-18
    100551802258-18
    125622102558-18
    150672402858-22
    200852953408-22
    25010535041012-22
    30012040048012-22
    35013046053016-22
    40014051560516-26
    45015256563020-26
    50015562070520-26
    60017572582020-30
    70020084092524-30
    800240950106024-33
    9002401050117028-33
    10003001160129028-36
    12003001380151032-39
