Research: Can Butterfly Valves Be Installed Upside Down?

“Can butterfly valves be installed upside down?”

"Yes — but with caution.
While butterfly valves are versatile, their installation orientation significantly affects performance, sealing integrity, and service life."

---

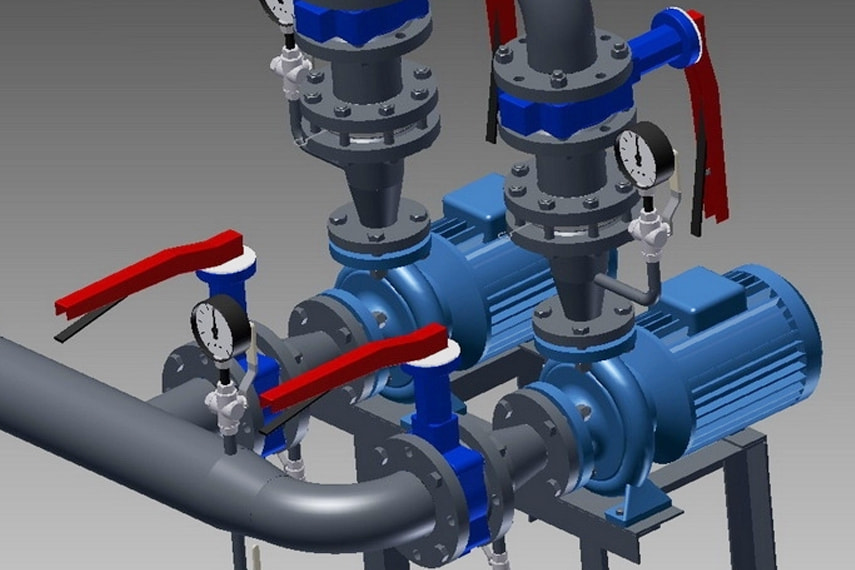

Understanding Butterfly Valve Orientation

Butterfly valves are quarter-turn rotary valves used to regulate or isolate flow in water, HVAC, chemical, oil & gas, and wastewater treatment systems. These valves are commonly mounted in both:

• Horizontal pipelines

• Vertical pipelines

But the disc position, stem orientation, and actuator mounting can impact whether the valve operates optimally — especially if installed upside down.

---

What Does “Upside Down” Mean in Butterfly Valve Installation?

“Upside down” typically refers to:

• The disc stem or shaft being oriented below the pipe centerline (i.e., at the 6 o’clock position)

• The actuator or gearbox being mounted beneath the pipeline

Although butterfly valves may physically function in this orientation, it’s not always ideal.

---

Potential Issues When Installing Butterfly Valves Upside Down

1. Increased Wear on Stem Seals

   • Gravity causes moisture, condensate, or sediment to settle on the lower stem, leading to seal wear or leakage.

2. Difficult Maintenance Access

   • Electric or pneumatic actuators mounted underneath can be hard to access, increasing labor time.

3. Improper Flow Direction

   • Especially in high-performance butterfly valves (e.g., double-offset or triple-offset), flow direction matters. Upside-down installation may reverse intended flow path, causing seal misalignment.

4. Actuator Drainage Problems

   • Inverted electric actuators may collect condensation inside the housing, risking damage to electrical components.

5. Unbalanced Disc Movement

   • Sediment or gas bubbles may affect disc rotation when valves are installed upside down in vertical lines.

---

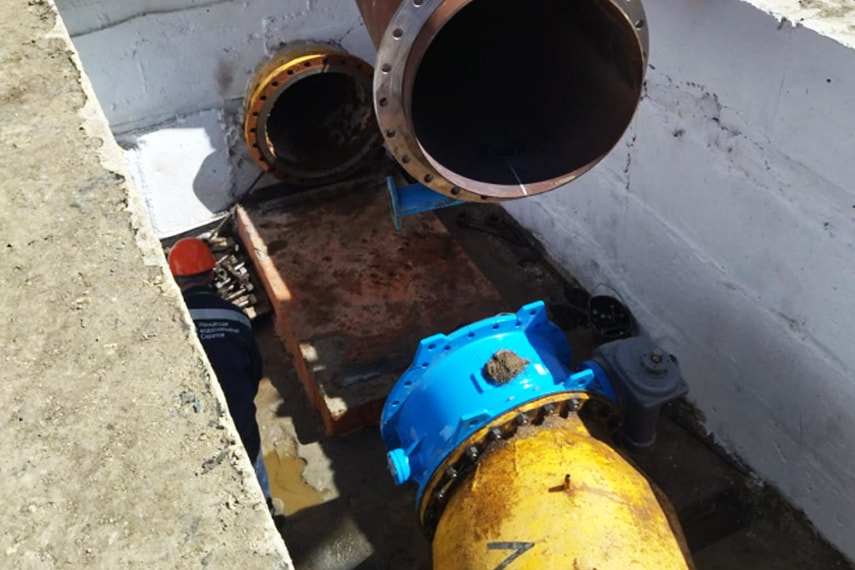

Best Practices for Butterfly Valve Installation

To ensure optimal performance:

✅ Follow flow direction arrows on the valve body

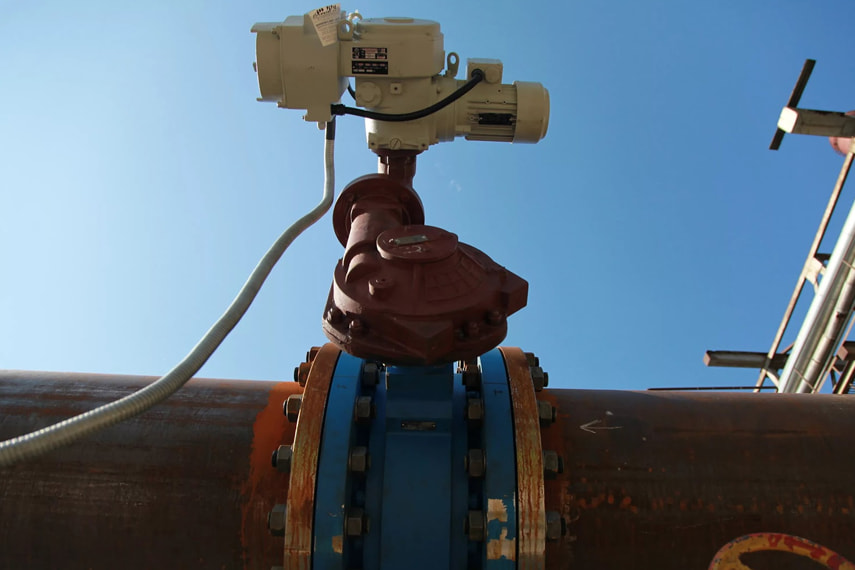

✅ Mount the actuator above the pipeline whenever possible
✅ In vertical pipes, install the valve with the disc shaft horizontal
✅ Use ISO 5211 mounting flanges for precise alignment
✅ Ensure proper gasket compression (especially in wafer-type butterfly valves)
✅ Avoid installing triple-offset butterfly valves upside down — they're highly directional

---

Wafer vs. Lug Type Butterfly Valves Installation

Valve Type	Upside-Down Suitability	Key Consideration
Wafer Butterfly Valve	Limited	Needs symmetric gasket compression
Lug Butterfly Valve	More Flexible	Still better to install right-side up
Flanged Butterfly Valve	Best for precise orientation	Easy alignment and torque control
