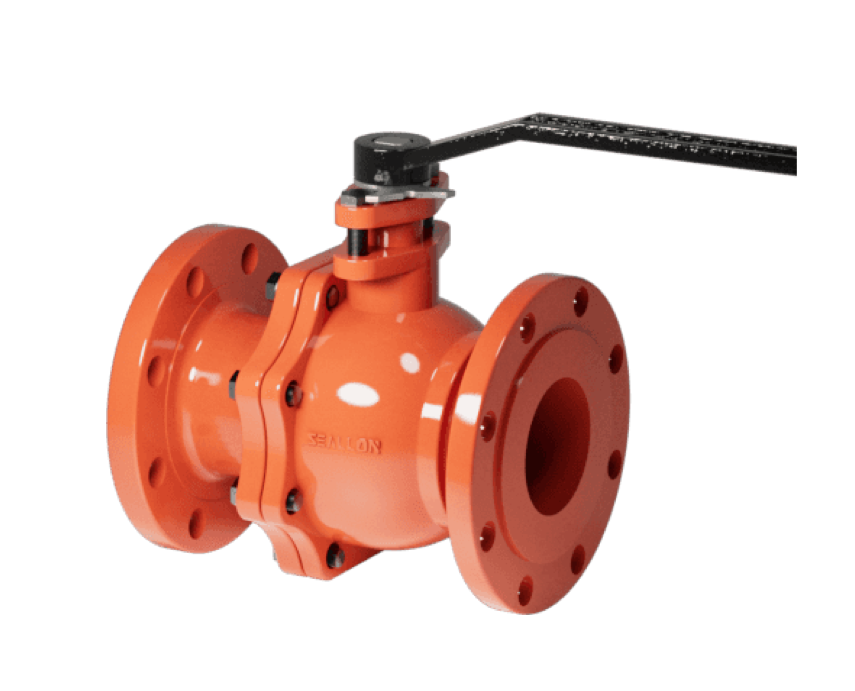

    • Flanged Cast Steel Ball Valve SK41

    DN

    50~600 (2"~24")

    PN

    1.0~6.4 (Class150~600)

    Temperature Range

    -59°C~650°C

    Connection

    Flanged

    Installation Direction

    Bidirectional

    Design

    GB/T12235, API608

    Face to Face

    GB/T12221, ASME B16.10

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T26480, ISO5028, API598, JB/T9092

    Body Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Ball Materials

    304, 316, 321, 316Ti, 904L, 310S

    Stem Materials

    420, 35CrMoA, F6a, F11, F304, F316, F321

    Seat Materials

    PTFE, PFA, PPL, PEEK, 420, Stellite alloy, Hastelloy, Inconel, Monel

    Features & Benefits

    SK41 has a wide range of applications, minimal fluid resistance, and the packing is not easy to be destroyed. The sealing ring is made of elastic materials such as FEP, keeping zero leakage. It can be rapidly opened&shut with small torque, easily repaired.

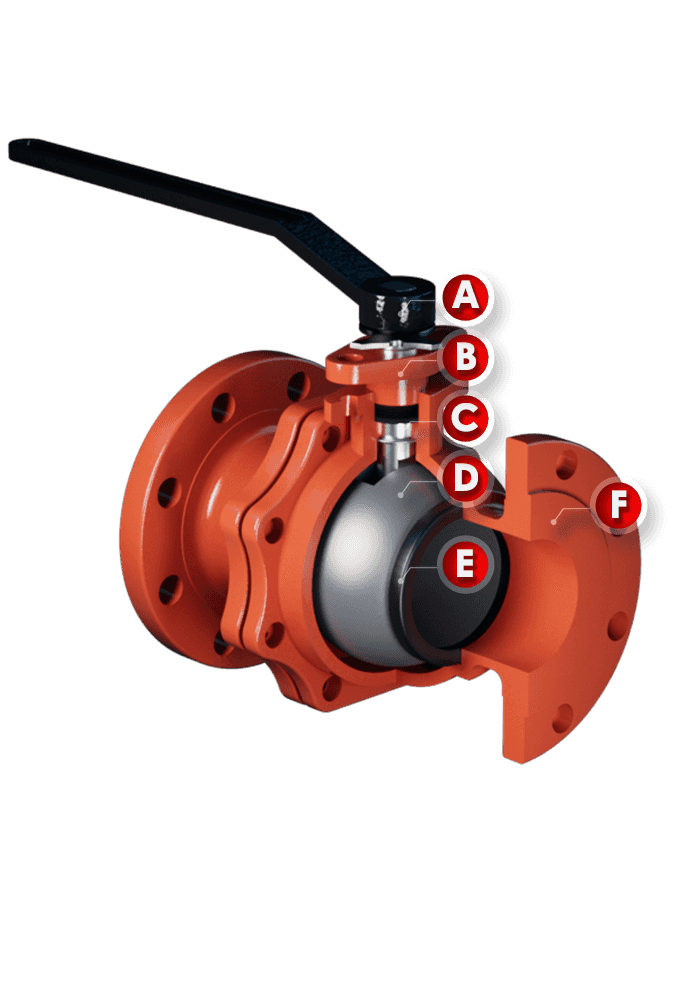

    Flanged Cast Steel Ball Valve SK41

    One-piece cast handle, easy to operate, quick to open and close. The top flange under actuator can also be customized according to customer requirements.

    The gland effectively protects the internal packing, thus preventing the medium leaking out from the stem. Also, it can be opened and then the packing can be replaced in time to solve the problem of leakage from the stem.

    The stem is internally installed, whose shoulder and PTFE (or reinforced graphite) thrust pad prevent the stem from blowing out due to the sudden increase of pressure in the pipeline.

    It has good sealing performance with high precision grinding. Also, it can be hardened as required.

    Fluoroplastic seat can achieve complete sealing and zero leakage. The seat can be replaced, whose material can be selected according to the medium.

    Two-piece structure is convenient to replace parts such as ball and seat. Different materials can be selected according to working conditions.

    One-piece cast handle, easy to operate, quick to open and close. The top flange under actuator can also be customized according to customer requirements.

    The gland effectively protects the internal packing, thus preventing the medium leaking out from the stem. Also, it can be opened and then the packing can be replaced in time to solve the problem of leakage from the stem.

    The stem is internally installed, whose shoulder and PTFE (or reinforced graphite) thrust pad prevent the stem from blowing out due to the sudden increase of pressure in the pipeline.

    It has good sealing performance with high precision grinding. Also, it can be hardened as required.

    Fluoroplastic seat can achieve complete sealing and zero leakage. The seat can be replaced, whose material can be selected according to the medium.

    Two-piece structure is convenient to replace parts such as ball and seat. Different materials can be selected according to working conditions.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    PTFEHeat, cold, acid, alkali, organic solvents resistant-60180-45~150
    RPTFECorrosion resistance, low friction coefficient-60180-45~150
    PTFE+CarbonHeat, cold, acid, alkali, organic solvents resistant-60230-45~200
    PTFE+GlassHeat, cold, acid, alkali, organic solvents resistant-60200-45~180
    PEEKHigh temperature and chemical resistance-60300-45~260
    PPLHigh temperature and chemical corrosion resistance-60230-45~200
    PEEKHigh temperature and chemical resistance-60300-45~260
    Metal to metalHigh temperature, high pressure, wear, corrosion resistanceRefer to the metal material

    Dimensions

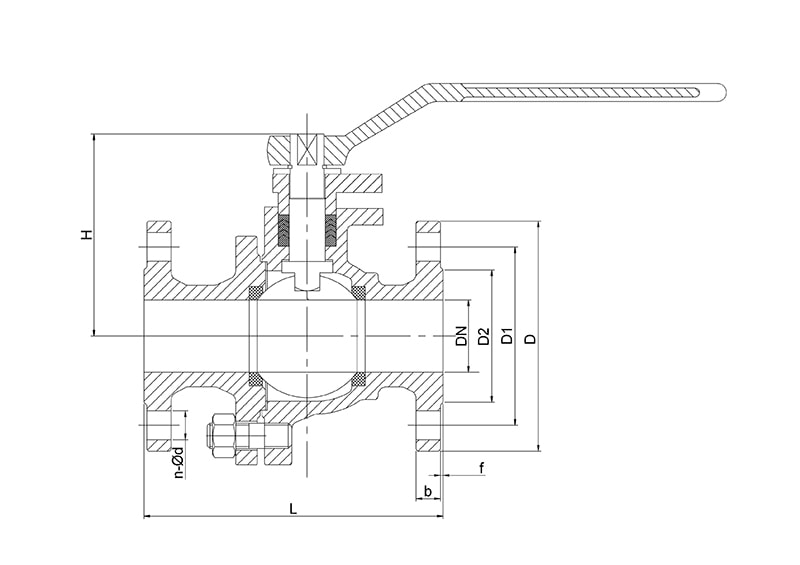

    Flanged Cast Steel Ball Valve SK41's Drawing

    GB/T 9113 PN16

    DNLDD1D2bfn-ΦdH
    151309565451624-1478
    2014010575551824-1484
    2515011585651824-1495
    32165140100781824-18150
    40180150110851824-18150
    502001651251001824-18170
    652201851451201828-18195
    802502001601352028-18215
    1002802201801552028-18250
    1253202502101852238-18265
    1503602852402102238-22270
    20040034029526524312-22330

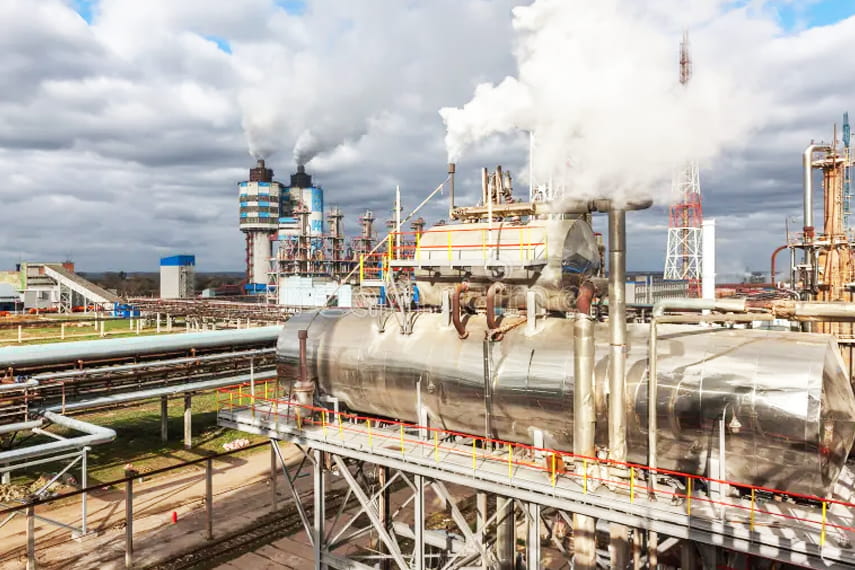

    RELATED CASE
