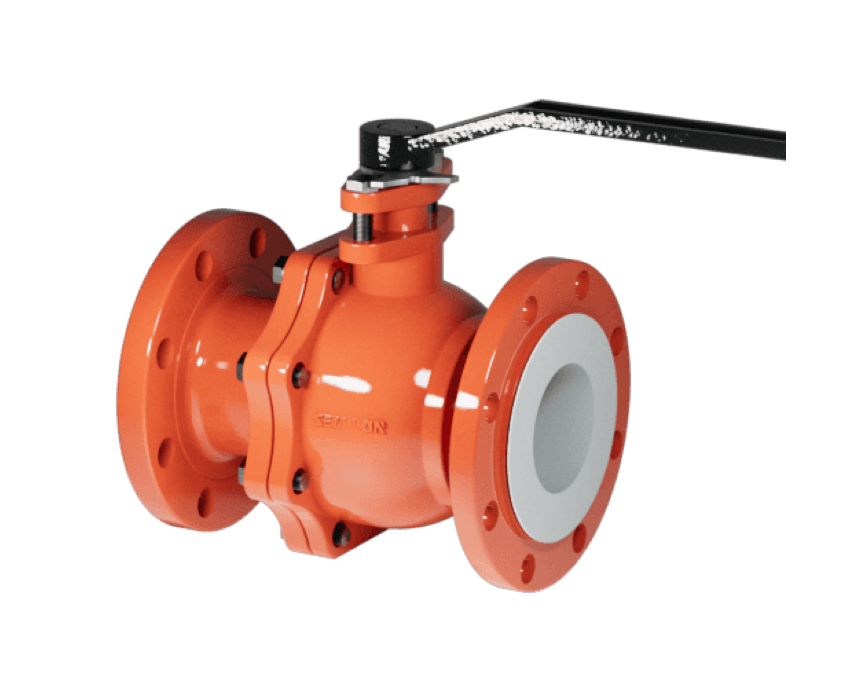

Flanged Full-lined Ball Valve SK41-P

DN

50~600 (2"~24")

PN

1.0~1.6 (Class150)

Temperature Range

-46°C~180°C

Connection

Flanged

Installation Direction

Bidirectional

Design

GB/T12235, API608

Face to Face

GB/T12221, ASME B16.10

Flange Drilling

GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

Top Connection

ISO5211, GOST55510

Inspection

GB/T26480, ISO5028, API598, JB/T9092

Body Materials

WCB, CF8, CF8M, 321, 316Ti, 904L

Ball Materials

WCB+FEP/PFA, 304+FEP/PFA, 316+FEP/PFA

Stem Materials

420, 304, 316

Seat Materials

FEP, PFA

[email protected]

Inquiry Now

Features & Benefits

SK41-P , fluorine-lined ball valve,has extremely high chemical stability and is suitable for any highly corrosive chemical medium; the full bore floating ball valve structure is used to prevent the leakage within the entire pressure range. It is widely used in petroleum, chemical industry, dyeing and chemical industry, pesticides, acid and alkali production and other industries, and it is the most ideal choice for anticorrosive valves.

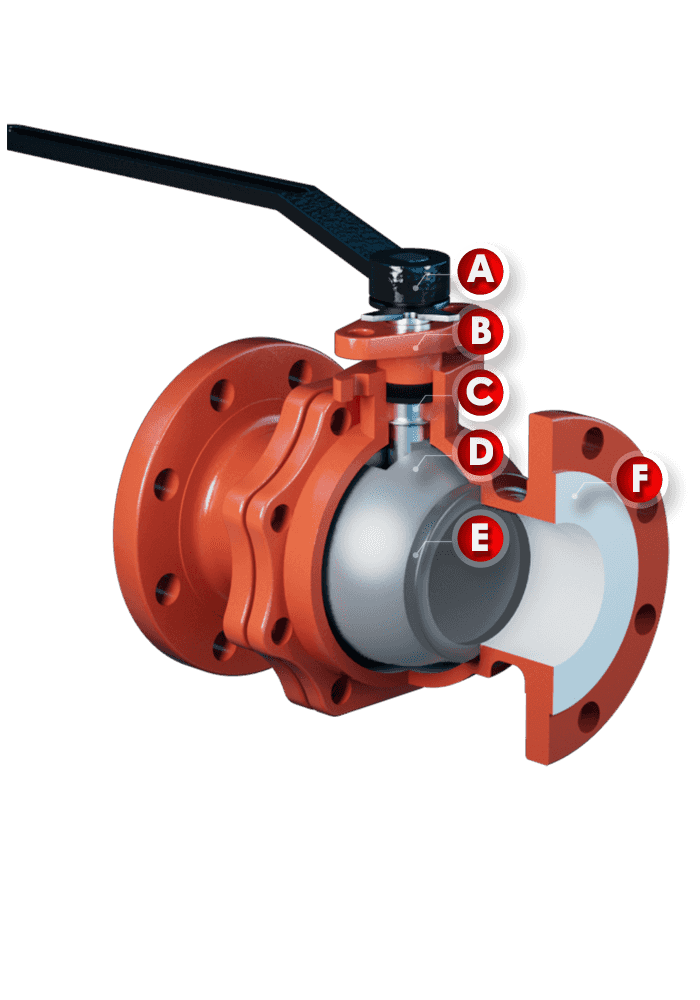

A. Handle

One-piece cast handle, easy to operate, quick to open and close. The top flange under actuator can also be customized according to customer requirements.

B. Gland

The gland effectively protects the internal packing, thus preventing the medium leaking out from the stem. Also, it can be opened and then the packing can be replaced in time to solve the problem of leakage from the stem.

C. Stem

The stem is internally installed, whose shoulder and PTFE (or PFA) thrust pad prevent the stem from blowing out due to the sudden increase of pressure in the pipeline.

D. Ball

The ball is coated with anticorrosive materials such as PTFE, PFA to avoid contact between the metal core and the medium, and it fits closely with the seat to ensure sealing and extend its service life.

E. Seat

Fluoroplastic seat can achieve complete sealing and zero leakage. The seat can be replaced, whose material can be selected according to the medium.

F. Body

The inside of body is covered with fluoroplastic, keeping zero contact with the medium, effectively enhancing the corrosion resistance. Two-piece structure is convenient to replace parts such as ball and seat. Different materials can be selected according to working conditions.

Industry Options

Materials	Characteristics	Low Temp. ℃	High Temp. ℃	Recommended ℃
PTFE	Heat, cold, acid, alkali, organic solvents resistant	-60	180	-45~150
FEP (F46)	Chemical resistance, radiation resistance	-20	150	-5~120
PFA	Excellent chemical corrosion resistance, low friction coefficient	-60	200	-45~180

Dimensions

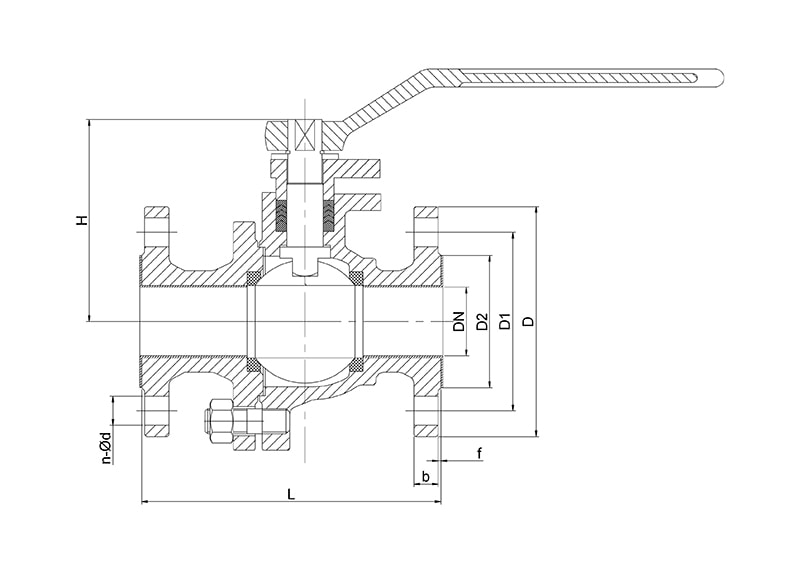

Flanged Full-lined Ball Valve SK41-P's Drawing

GB/T 9113 PN16

DN	L	D	D1	D2	b	f	n-Φd	H
15	130	95	65	45	16	2	4-14	78
20	140	105	75	55	18	2	4-14	84
25	150	115	85	65	18	2	4-14	95
32	165	140	100	78	18	2	4-18	150
40	180	150	110	85	18	2	4-18	150
50	200	165	125	100	18	2	4-18	170
65	220	185	145	120	18	2	8-18	195
80	250	200	160	135	20	2	8-18	215
100	280	220	180	155	20	2	8-18	250
125	320	250	210	185	22	3	8-18	265
150	360	285	240	210	22	3	8-22	270
200	400	340	295	265	24	3	12-22	330
