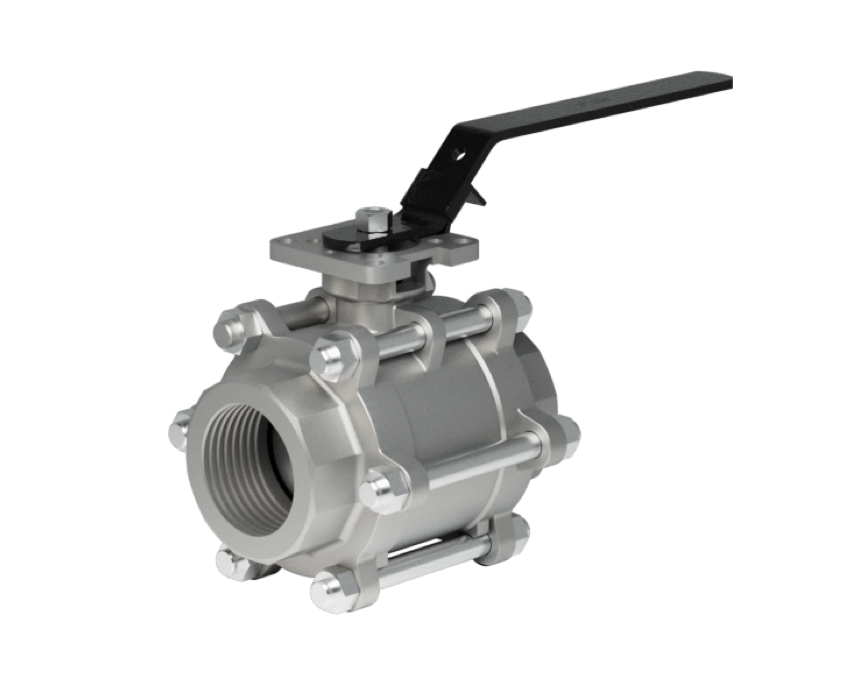

Threaded Cast Steel Ball Valve SK11

DN

15~100 (1/2"~4")

PN

1.0~6.4 (Class150~600)

Temperature Range

-59°C~200°C

Connection

Threaded, Welded

Installation Direction

Bidirectional

Design

GB/T8464

Face to Face

GB/T12221, ASME B16.10

Thread

GB/T192, GB/T193, NPT, BSP

Top Connection

ISO5211, GOST55510

Inspection

GB/T26480, ISO5028, API598, JB/T9092

Body Materials

WCB, CF8, CF8M, CF3, CF3M, 321, 316Ti

Ball Materials

304, 316, 304L, 316L, 321, 316Ti

Stem Materials

420, 35CrMoA, F6a, F11, F304, F316, F321

Seat Materials

PTFE, PFA, PPL, PEEK

[email protected]

Inquiry Now

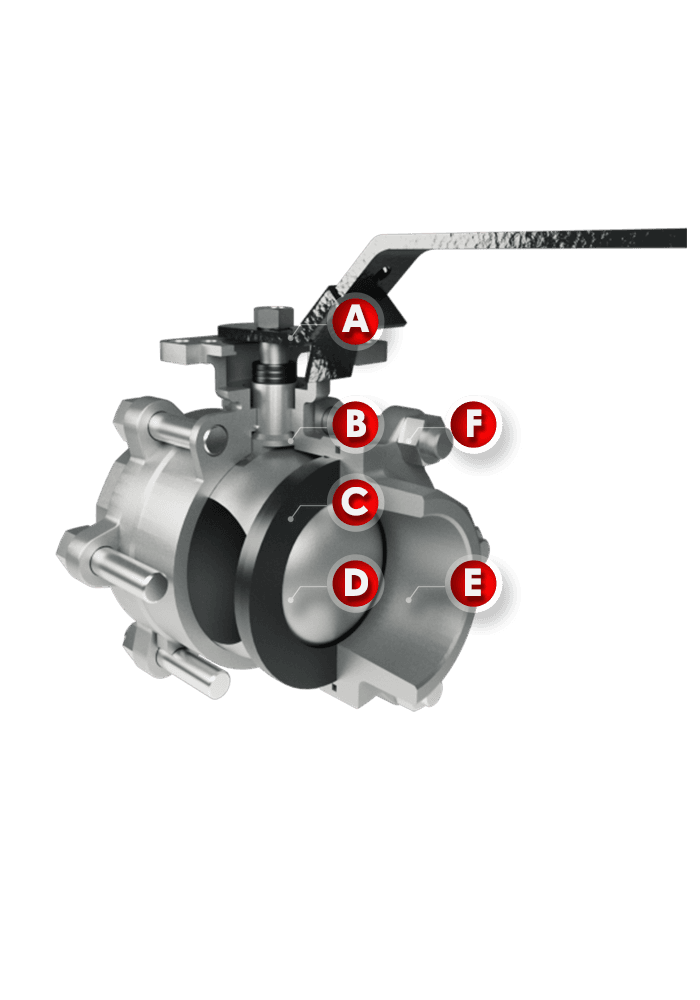

Features & Benefits

SK11 has small fluid resistance and good sealing performance, widely used in vacuum systems. The seat is movable, and it is more convenient to disassemble and replace. When it is fully open or closed, the seat is isolated from the medium. When the medium passes through, it will not cause erosion of the valve sealing surface.

A. Handle

The forged one-piece handle has high strength and good toughness, extended design, and it’s more labor-saving to open the valve.

B. Upper Stem

The upper stem has a thrust design.

C. Seat

The seat material can be selected according to the medium such as PTFE, PPL, PEEK and etc.

D. Ball

Through high-precision processing and grinding, the ball has high hardness and is tightly connected with the valve seat, which has a good sealing performance.

E. Body

Body material can be selected according to the medium and the platform under actuator can be customized according to customer requirements. The connection can be threaded, flanged and butt welded.

F. Structure

Three-piece detachable design allows the valve internals to be replaceable and extends the service life of the valve.

A. Handle +

The forged one-piece handle has high strength and good toughness, extended design, and it’s more labor-saving to open the valve.

B. Upper Stem +

The upper stem has a thrust design.

C. Seat +

The seat material can be selected according to the medium such as PTFE, PPL, PEEK and etc.

D. Ball +

Through high-precision processing and grinding, the ball has high hardness and is tightly connected with the valve seat, which has a good sealing performance.

E. Body +

Body material can be selected according to the medium and the platform under actuator can be customized according to customer requirements. The connection can be threaded, flanged and butt welded.

F. Structure +

Three-piece detachable design allows the valve internals to be replaceable and extends the service life of the valve.

Industry Options

Materials	Cr	Ni	Mo	Ti	Temp. Range ℃
WCB	0.5	0.5	0.2	-	-29~425
A105	0.3	0.4	0.12	-	≤450
LF2	-	-	-	-	-59~345
CF8	18~21	8~11	0.05	-	≤458 (540)
CF8M	18~21	9~13	2~3	-	≤425 (540)
CF3	17~21	8~12	0.5	-	≤425
CF3M	17~21	9~13	2~3	-	≤455
