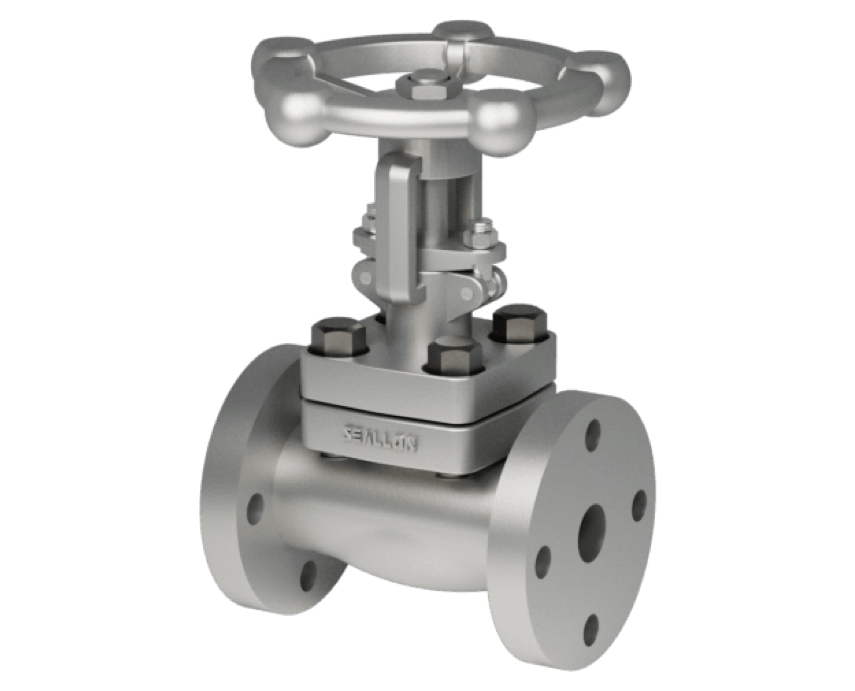

    • Flanged Forged Steel Gate Valve SG41-F

    DN

    15~50 (1/2"~2")

    PN

    1.0~16.0 (Class150~2500)

    Temperature Range

    -59°C~650°C

    Connection

    Flanged

    Installation Direction

    Bidirectional

    Design

    GB/T12234, API602, ASME B16.34

    Face to Face

    GB/T12221, ASME B16.10, Customized

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T26480, ISO5028, API598, JB/T9092

    Body Materials

    A105, LF2, F11, F51, F91, F304, F316

    Disc Materials

    A105, LF2, F11, F51, F91, F304, F316

    Stem Materials

    410, F6a, F51, F91, F304, F316

    Seat Materials

    410, 410HF, F51, F91, F304, F316, STL

    Features & Benefits

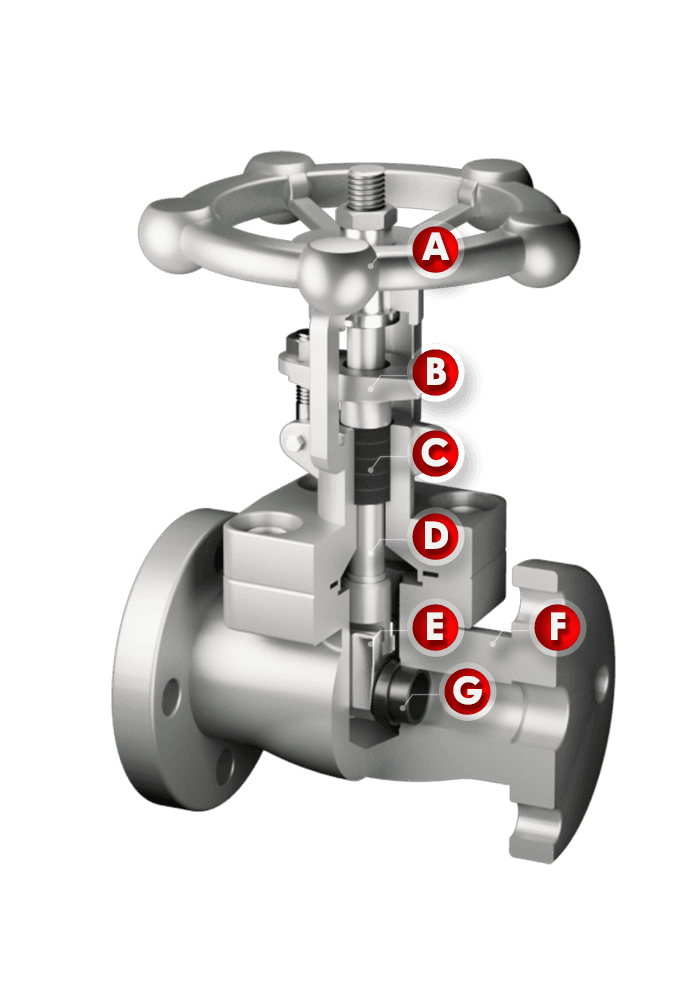

    SG41-F has simple body shape and better forging process. The pressure and temperature range are higher than that of cast steel valves. The sealing performance is much better, and the life span is longer.

    Flanged Forged Steel Gate Valve SG41-F

    Its material is forged steel as same as the valve body, which is more durable and allows to be opened and closed thousands of times without deformation.

    The gland effectively protects the internal packing, thus preventing the medium from leaking out from the stem.

    As a common packing material, flexible graphite is cheap, easy to replace and can bear high & low temperature.

    Different materials can be selected according to working conditions.

    Wedge disc has good sealing performance. Its wedge-shaped sealing surface is relatively less damaged by medium’s sediment. Also, the disc can be surfacing welding Stellite and etc.

    The forged body has smooth surface, high pressure resistance and corrosion resistance. Its plasticity and toughness are better than the cast body, and its service life is longer.

    The seat can be surfacing welding Stellite and etc.

    Its material is forged steel as same as the valve body, which is more durable and allows to be opened and closed thousands of times without deformation.

    The gland effectively protects the internal packing, thus preventing the medium from leaking out from the stem.

    As a common packing material, flexible graphite is cheap, easy to replace and can bear high & low temperature.

    Different materials can be selected according to working conditions.

    Wedge disc has good sealing performance. Its wedge-shaped sealing surface is relatively less damaged by medium’s sediment. Also, the disc can be surfacing welding Stellite and etc.

    The forged body has smooth surface, high pressure resistance and corrosion resistance. Its plasticity and toughness are better than the cast body, and its service life is longer.

    The seat can be surfacing welding Stellite and etc.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    A1050.30.40.12-≤450
    LF2-----59~345
    F30418~208~11--≤540 (800)
    F31616~1810~142~3-≤540 (800)
    F5121~234.5~6.52.5~3.5--40~315
    F1--0.44~0.65-≤470
    F20.5~0.81-0.44~0.65-≤540
    F111~1.5-0.44~0.65-≤545
    F22-0.87~1.13--≤550
    F120.8~1.25-0.44~0.65-≤545
    F98~10-0.9~1.1-≤673
    F918~9.50.40.85~1.05-≤673

    Dimensions

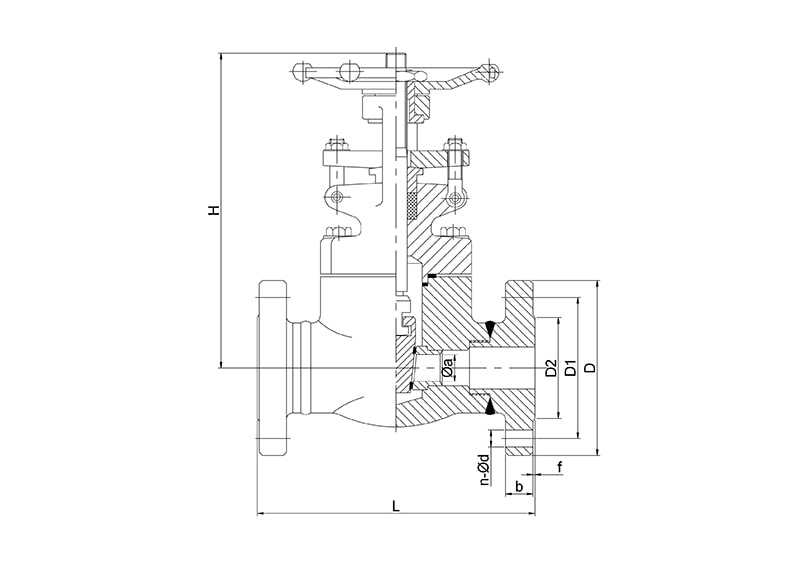

    Flanged Forged Steel Gate Valve SG41-F's Drawing

    GB/T 9113 PN16

    DNLDD1D2bfn-ΦdH
    151409565451624-14155
    2015010575551824-14157
    2516511585681824-14186
    32178140100781824-18220
    40200150110881834-18246
    502501651251022034-18268

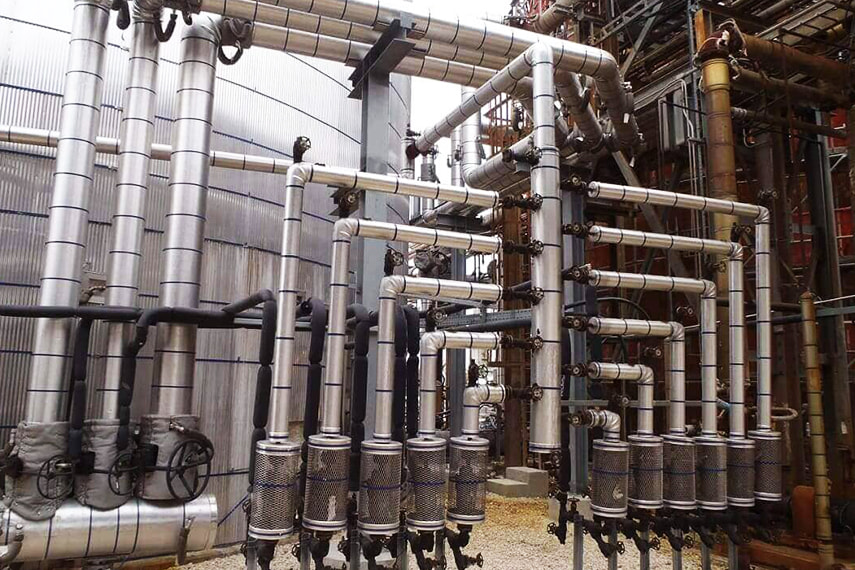

    RELATED CASE
