Research: Pressure unit conversion, Mpa, Bar, Psi

Different countries use various methods to express pipeline pressure and employ different units. Here's an overview of the common pressure units used in different regions and their conversions:

1. International System of Units (SI Units)

Pressure Unit: Pascal (Pa), but commonly used units are MegaPascal (MPa) or KiloPascal (kPa).

Conversion Relations:

1 MPa = 1,000,000 Pa

1 kPa = 1,000 Pa

1 bar = 100,000 Pa = 100 kPa

1 atm = 101.325 kPa

2. United States (Imperial System)

Pressure Unit: Pounds per square inch (psi).

Conversion Relations:

1 psi ≈ 6894.76 Pa

1 psi ≈ 0.06895 bar

1 bar ≈ 14.5038 psi

3. European Countries

In Europe, bar is the common pressure unit, though Pa or MPa are also used in certain cases.

Pressure Units: bar, MPa, or kPa.

Conversion Relations:

1 bar = 100 kPa = 100,000 Pa

1 MPa = 10 bar

4. United Kingdom

The UK traditionally uses pounds per square inch (psi), but bar and Pa are also common in industrial and engineering fields.

Pressure Units: psi, bar, Pa.

Conversion Relations are similar to the US system.

5. Japan

Japan typically uses MPa (MegaPascal) for pipeline pressure, but kPa (KiloPascal) and Pa are also used.

Pressure Units: MPa, kPa, Pa.

Conversion Relations:

1 MPa = 10 bar

1 kPa = 1,000 Pa

6. China

In China, Pa (Pascal) is commonly used, with kPa (KiloPascal) and MPa (MegaPascal) often found in industrial contexts. Bar is also used in some applications.

Pressure Units: Pa, kPa, MPa, bar.

Conversion Relations:

1 MPa = 10 bar

1 bar = 100 kPa = 100,000 Pa

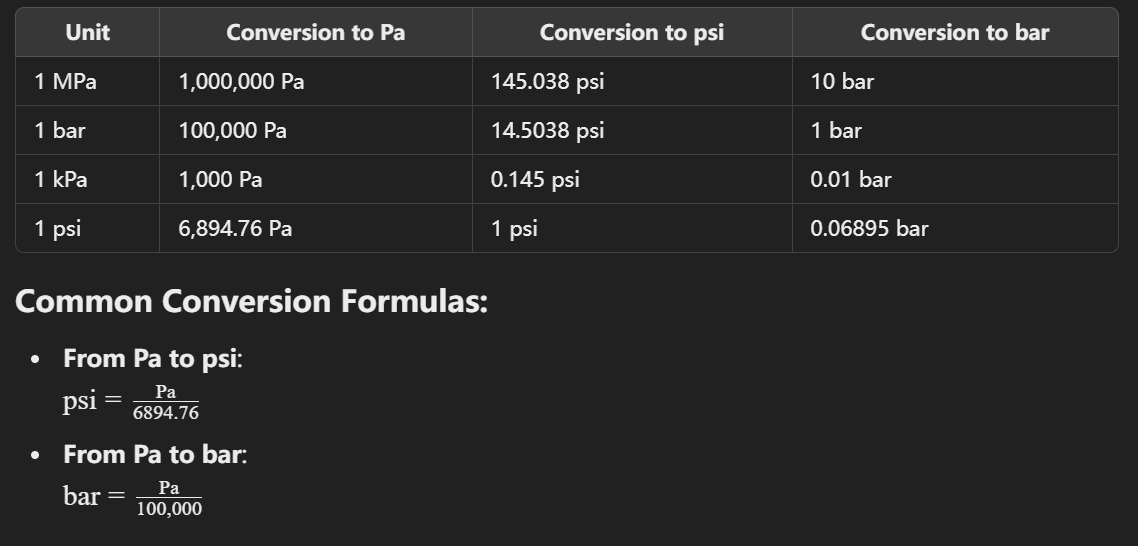

Unit Conversion Summary Table:

With these conversions, you can easily understand and convert pipeline pressure measurements across different countries and units.
