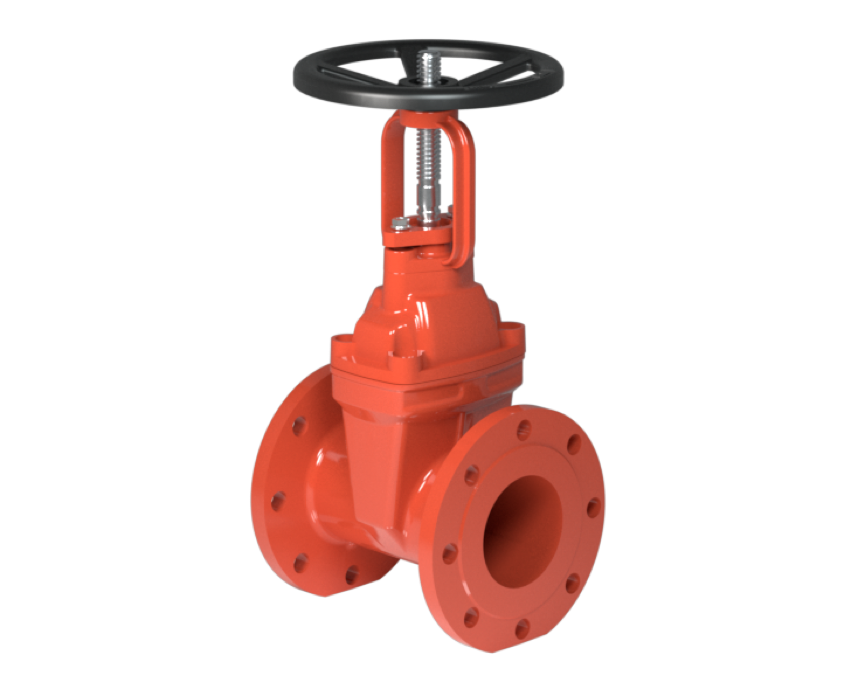

    • Flanged Rising Stem Gate Valve SG42

    DN

    25~1400 (1"~56")

    PN

    1.0~2.5 (Class150)

    Temperature Range

    -20°C~130°C

    Connection

    Flanged, Threaded, Welded

    Installation Direction

    Bidirectional

    Design

    DIN3352, BS5163

    Face to Face

    DIN3202 F4, DIN3202 F5, GB/T12221, EN558-1, BS5163

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    ISO5211, GOST55510

    Inspection

    DIN3230, GB/T13927, ISO5028

    Body Materials

    GGG40, GGG50, CF8, CF8M

    Disc Materials

    GGG40, GGG50, CF8, CF8M

    Stem Materials

    420, F304, F316

    Seat Materials

    EPDM, NBR, MVQ, Brass, 420, 304, 316

    Features & Benefits

    SG42 is designed with Rising Stem, which extends from above the disc, allowing direct observation of the position of the valve stem. The friction between the valve stem and the stem nut inside the gate valve is small, resulting in low opening and closing torque. It is often operated with a handwheel and is suitable for situations that require frequent opening and closing, such as water supply systems, drainage systems, etc.

    Flanged Rising Stem Gate Valve SG42

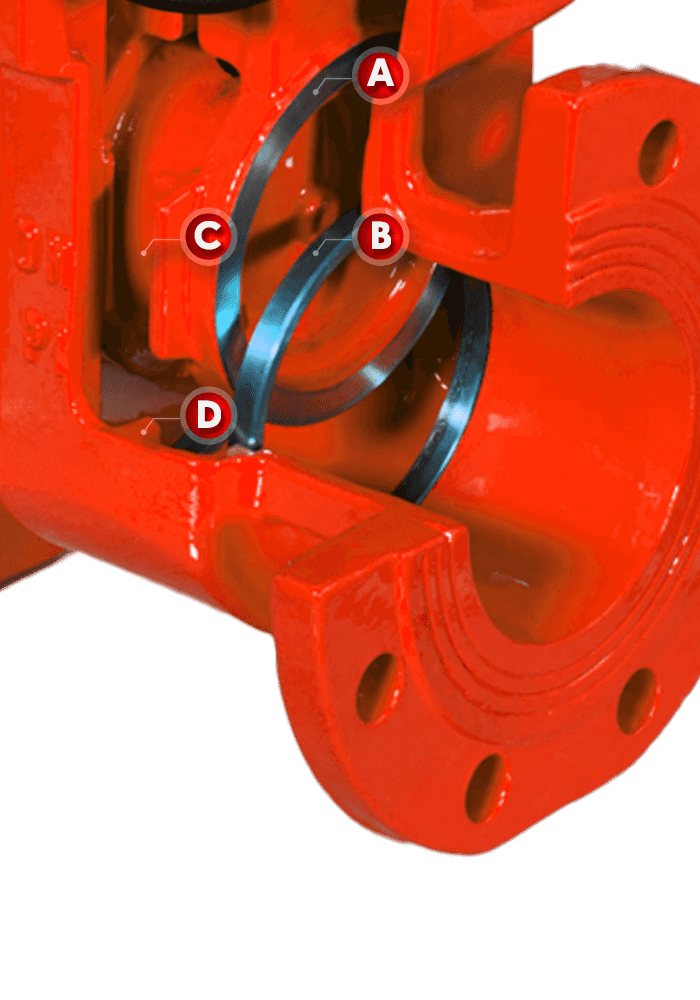

    After repeated grinding, it fits closely with the metal valve seat to achieve a hard seal and zero leakage.

    Replaceable seat, can be composed of brass, bronze or stainless steel, used in different working conditions.

    The guide block helps the disc to open and close vertically, and the disc does not shift during the pressure bearing process, so as to achieve long-term sealing.

    Ensure the verticality of the movement of the guide block.

    After repeated grinding, it fits closely with the metal valve seat to achieve a hard seal and zero leakage.

    Replaceable seat, can be composed of brass, bronze or stainless steel, used in different working conditions.

    The guide block helps the disc to open and close vertically, and the disc does not shift during the pressure bearing process, so as to achieve long-term sealing.

    Ensure the verticality of the movement of the guide block.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135
    MVQ (Silicon)High and low temperature resistance, oil, corrosion resistance-55200-30~180
    BrassHigh temperature and wear resistance-60300-45~260
    Stainless steelHigh temperature and wear, corrosion resistance-60450-45~400

    Dimensions

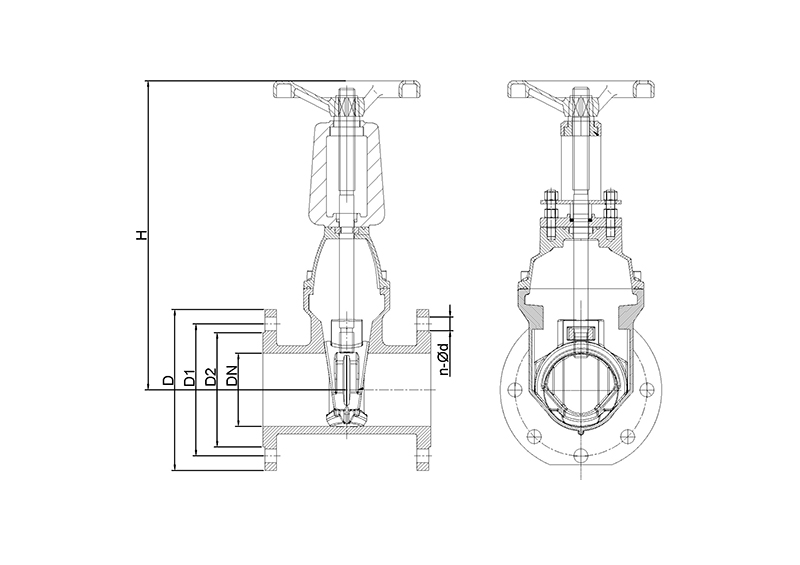

    Flanged Rising Stem Gate Valve SG42's Drawing

    EN1092-2 PN16

    DNLDD1D2bfn-Φd
    50150165125991934-19
    651701851451181934-19
    801802001601321938-19
    1001902201801561938-19
    1252002502101841938-19
    1502102852402111938-23
    20023034029526620312-23
    25025040035531922312-28
    30027045541037024412-28
    35029052047042926416-28
    40031058052548028416-31
    45033064058554830420-31
    50035071565060931420-34
    60039084077072036520-37
    70043091084079440524-37
    800470102595090143524-41
    90051011251050100147528-41
    100055012551170111250528-44
    120063014851390132857532-50
    140071016851590153060536-50
