    • Flanged Resilient Gate Valve SG45

    DN

    25~1400 (1"~56")

    PN

    1.0~2.5 (Class150)

    Temperature Range

    -20°C~130°C

    Connection

    Flanged, Threaded, Welded

    Installation Direction

    Bidirectional

    Design

    DIN3352, BS5163

    Face to Face

    DIN3202 F4, DIN3202 F5, GB/T12221, EN558-1, BS5163

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    ISO5211, GOST55510

    Inspection

    DIN3230, GB/T13927, ISO5028

    Body Materials

    GGG40, GGG50, CF8, CF8M

    Disc Materials

    GGG40, GGG50, CF8, CF8M

    Stem Materials

    420, F304, F316

    Seat Materials

    EPDM, NBR, MVQ

    Features & Benefits

    SG45 adopts the same flat-bottomed design as the water pipe, which is not easy to cause debris accumulation and allows the fluid flow unobstructed. High-quality rubber and first-class rubber vulcanization process are used to make the disc have accurate dimensions, closely contact with the ductile iron valve body, have good elasticity and memory, and are not easy to fall off.

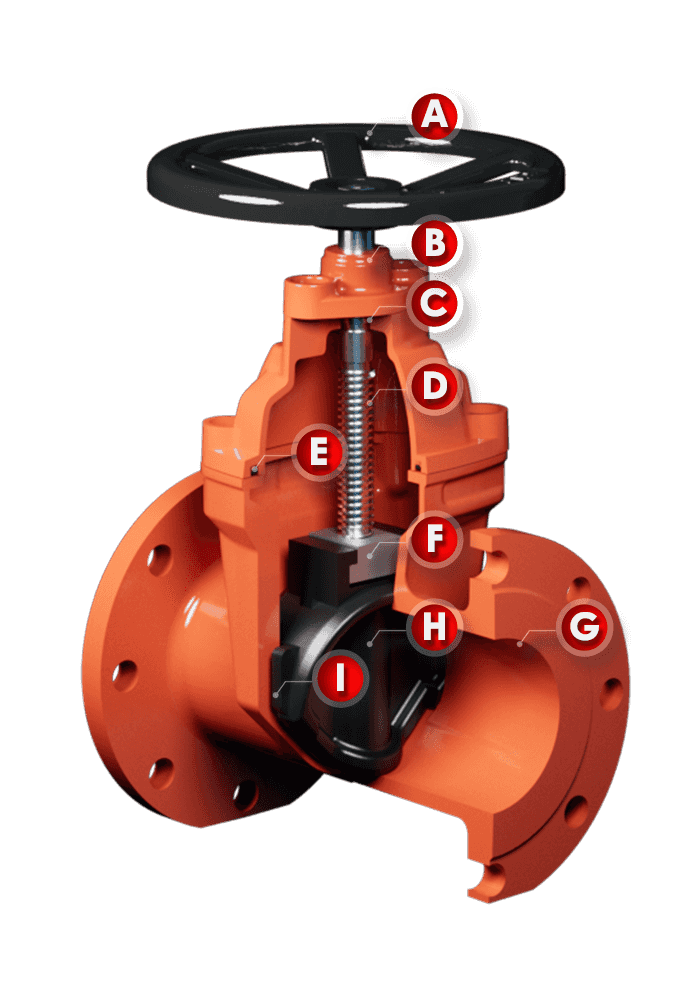

    Flanged Resilient Gate Valve SG45

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The gland effectively protects the internal packing, thus preventing the medium leaking out from the stem. Also, it can be opened and then the packing can be replaced in time to solve the problem of leakage from the stem.

    O ring is also used as stem seal, interference fit, and ensure tightness.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    The rubber gasket ensures the sealing between the cover and body. Different materials can be selected by requirements.

    The stem nut is the connection point between the stem and disc, and its wear resistance and corrosion resistance are the primary factors for material selection.

    One-piece structure, more reliable reinforced body and better pressure bearing capacity. The coating of body is epoxy powder with the thicknessof more than 250 microns.

    The whole resilient disc is covered with rubber, which has high sealing performance. Different materials can be selected according to the medium. The internal thread is combined with the stem, and the upper end is inlaid with the stem nut, so that the disc is not easy to fall off.

    In conjunction with the upper rail groove of the body, the disc is always opened and closed vertically up and down to avoid the shift caused by the pipeline pressure and lose sealing.

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The gland effectively protects the internal packing, thus preventing the medium leaking out from the stem. Also, it can be opened and then the packing can be replaced in time to solve the problem of leakage from the stem.

    O ring is also used as stem seal, interference fit, and ensure tightness.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    The rubber gasket ensures the sealing between the cover and body. Different materials can be selected by requirements.

    The stem nut is the connection point between the stem and disc, and its wear resistance and corrosion resistance are the primary factors for material selection.

    One-piece structure, more reliable reinforced body and better pressure bearing capacity. The coating of body is epoxy powder with the thicknessof more than 250 microns.

    The whole resilient disc is covered with rubber, which has high sealing performance. Different materials can be selected according to the medium. The internal thread is combined with the stem, and the upper end is inlaid with the stem nut, so that the disc is not easy to fall off.

    In conjunction with the upper rail groove of the body, the disc is always opened and closed vertically up and down to avoid the shift caused by the pipeline pressure and lose sealing.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135
    MVQ (Silicon)High and low temperature resistance, oil, corrosion resistance-55200-30~180

    Dimensions

    Flanged Resilient Gate Valve SG45's Drawing

    EN1092-2 PN16

    DNLDD1D2bfn-ΦdH
    50150165125991934-1982
    651701851451181934-1992
    801802001601321938-19100
    1001902201801561938-19110
    1252002502101841938-19125
    1502102852402111938-23180
    20023034029526620312-23202
    25025040035531922312-28235
    30027045541037024412-28265
    35029052047042926416-28305
    40031058052548028416-31335
    45033064058554830420-31365
    50035071565060931420-34405
    60039084077072036520-37445
    70043091084079440524-37520
    800470102595090143524-41605
    90051011251050100147528-41655
    100055012551170111250528-44715
    120063014851390132857532-50840
    140071016851590153060536-50980
