    • Flanged Bellows Globe Valve SGL41-B

    DN

    15~600 (1/2"~24")

    PN

    1.0~4.0 (Class150~300)

    Temperature Range

    -59°C~650°C

    Connection

    Flanged

    Installation Direction

    Unidirectional

    Design

    GB/T12235, BS1873, DIN3356

    Face to Face

    GB/T12221, ASME B16.10, DIN3202

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2543-2545

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092, DIN3230

    Body Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Disc Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Stem Materials

    420, 35CrMoA, F6a, F11, F304, F316, F321

    Seat Materials

    420, Stellite alloy, Hastelloy, Inconel, Monel

    Features & Benefits

    Under high temperature, SGL41-B’s stem does not contact with the medium, and its double seal ensures zero leakage from the stem. The sealing surface is surfacing with Co-based cemented carbide, and the stem surface is tempered and nitrided to ensure sufficient strength and toughness. It can be opened and closed tens of thousands of times.

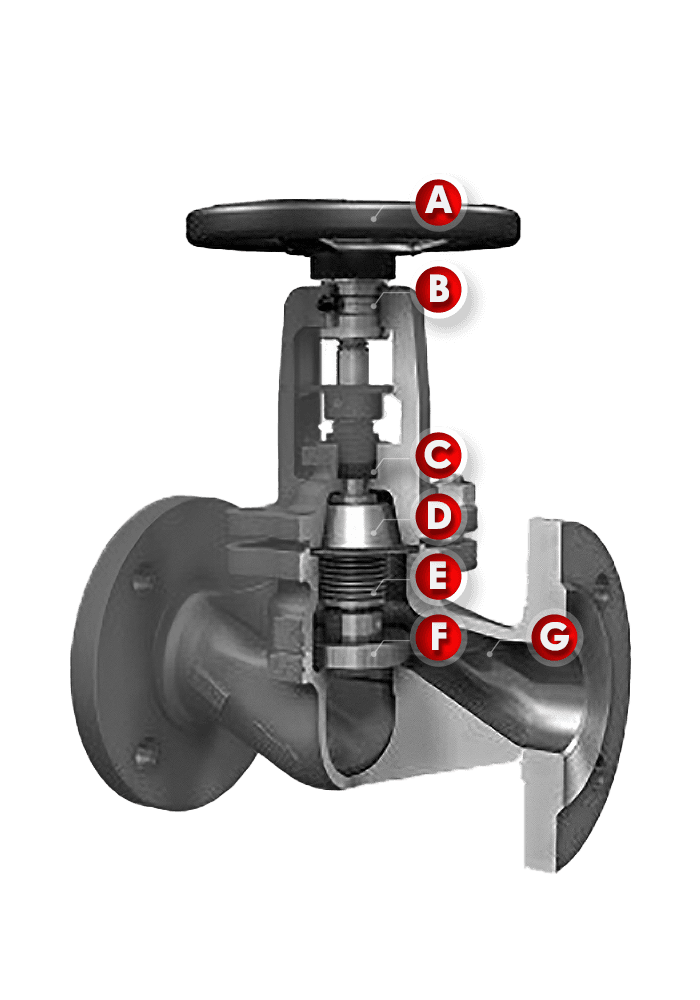

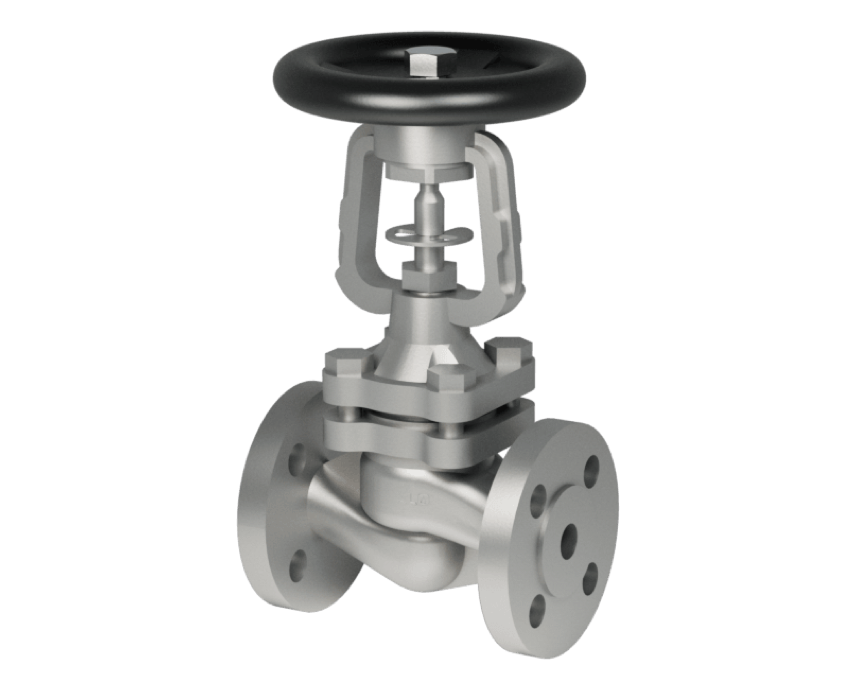

    Flanged Bellows Globe Valve SGL41-B

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving. The steel material can also be an economical option.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and steel can be selected by requirements.

    Reinforced graphite packing material can effectively enhance the sealing from the stem, reduce the opening and closing torque, and make the operation more labor-saving.

    Double seal is used. Under high temperature conditions, the stem does not contact with the medium for zero leakage. Meanwhile, sufficient strength and toughness are guaranteed, and it can be opened and closed tens of thousands of times.

    High-performance elastic metal bellows have a particularly long telescopic fatigue life. It completely eliminates the disadvantages of fast aging and easy leakage of ordinary stem packing seals.

    The sealing surface is flat or conical, and the disc moves linearly along the center line of the fluid. During the opening and closing process, the friction between the sealing surfaces is small, which is relatively durable. The opening height is not large. It is suitable for high pressure.

    There is no fluid loss, reducing energy loss and improving the safety of factory equipment.

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving. The steel material can also be an economical option.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and steel can be selected by requirements.

    Reinforced graphite packing material can effectively enhance the sealing from the stem, reduce the opening and closing torque, and make the operation more labor-saving.

    Double seal is used. Under high temperature conditions, the stem does not contact with the medium for zero leakage. Meanwhile, sufficient strength and toughness are guaranteed, and it can be opened and closed tens of thousands of times.

    High-performance elastic metal bellows have a particularly long telescopic fatigue life. It completely eliminates the disadvantages of fast aging and easy leakage of ordinary stem packing seals.

    The sealing surface is flat or conical, and the disc moves linearly along the center line of the fluid. During the opening and closing process, the friction between the sealing surfaces is small, which is relatively durable. The opening height is not large. It is suitable for high pressure.

    There is no fluid loss, reducing energy loss and improving the safety of factory equipment.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    WCC0.50.50.2--29~425
    WC10.350.50.45~0.65-≤455
    WC50.5~0.90.6~10.9~1.2-≤565
    WC61~1.5-0.45~0.65-≤595
    WC92~2.75-0.9~1.2-≤595
    C54~6.5-0.45~0.65-≤650
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)
    CF317~218~120.5-≤425
    CF3M17~219~132~3-≤455
    32117~199~12-0.5≤540 (700)
    904L19~2124~26---165~600
    316Ti16~1810~14-0.7-165~600
    310S24~2619~22--≤850
    LCB-----46~345
    LCC-----46~345
    LC1-----59~345

    Dimensions

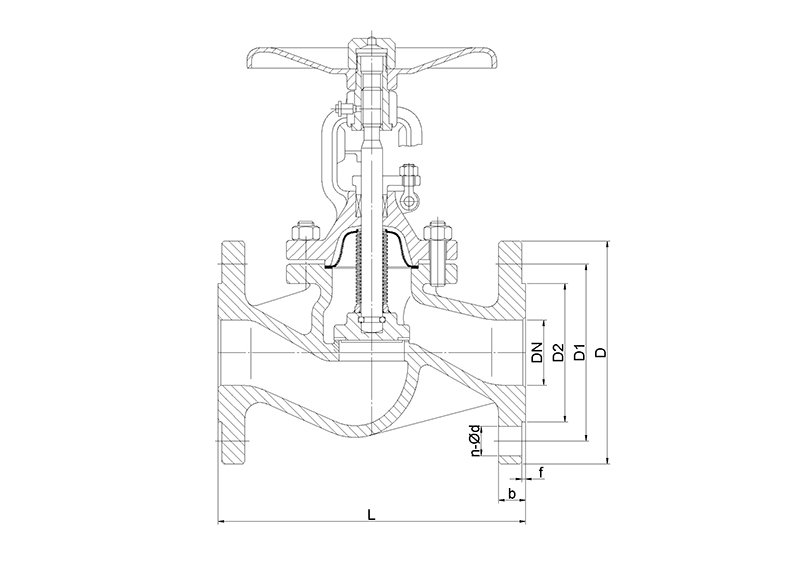

    Flanged Bellows Globe Valve SGL41-B's Drawing

    EN1092-1 PN16

    DNLDD1D2bfn-Φd
    151309565451424-14
    2015010575551424-14
    2516011585681424-14
    32180140100781624-18
    40200150110881634-18
    502301651251021634-18
    652901851451201838-18
    803102001601352038-18
    1003502201801552038-18
    1254002502101852238-18
    1504802852402102438-22
    20060034029526526312-22
    25073040535532030312-26
    30085046041037530412-26
    35098052047043534416-26
    400110058052548536416-30
    450105064058554540420-30
    500115071565060844420-33
    600135084077071848520-36
