    • Knife Gate Valve SG73-C Through Conduit

    DN

    50~2400 (2"~96")

    PN

    0.1~4.0 (Class300)

    Temperature Range

    -46°C~850°C

    Connection

    Wafer

    Installation Direction

    Unidirectional, Bidirectional

    Design

    JB/T8691

    Face to Face

    GB/T15188

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Disc Materials

    304, 316, 304L, 316L, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Stem Materials

    420, 431, 304, 316, 316L, 321

    Seat Materials

    EPDM, NBR, NR, SBR, PTFE, Viton, MVQ, 420, Stellite alloy, Polyurethane, Ceramics

    Features & Benefits

    SG73-C is a kind of valve where the through conduit disc and the seat are always in close contact and sealed. The principle is that there is a round hole on the disc, whose size is as same as the bore. Through the opening and closing of the disc, the round hole on the disc is completely detached from and coincides with the flow channel of the body. The gap between the valve chamber and the disc is small, and the medium will not stay in the valve chamber as the disc moves.

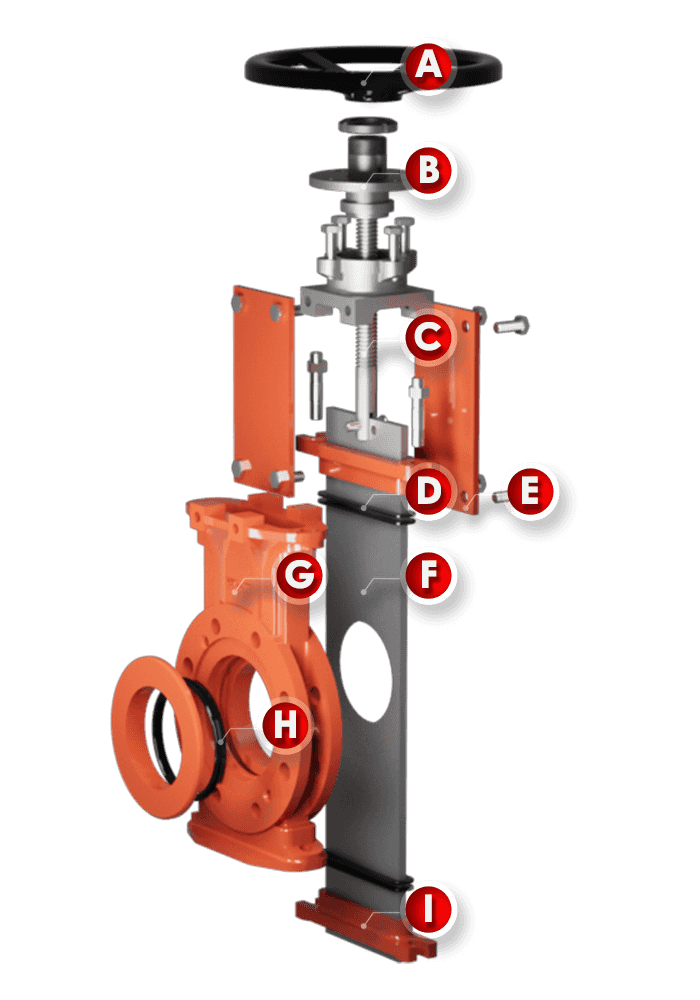

    Knife Gate Valve SG73-C Through Conduit

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    Platform under actuator can be customized according to requirements., which allows to install electric/pneumatic actuators by different standards.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    Rubber and nylon packing material can effectively enhance the sealing between the gland and disc. Different materials can be selected according to the medium.

    The yoke is composed of thickened steel plates, which is enough to support the disc, platform, and actuator.

    There is a round hole on the disc, and its size is as same as the bore. Through the opening and closing of the disc, the round hole on the disc is completely detached from and coincides with the flow channel of the body, and it has the characteristic of cutting off viscous medium.

    There is no groove in the flow channel of the body, so the medium will not get stuck and clogged. And it has the characteristics of full-diameter flow, which is suitable for the pipeline of powder granular medium. Different materials can be selected according to the working condition. Two-piece structure is available as requested.

    The seat is designed as a replaceable structure, which has anti-wear and automatic compensation functions, so it has a longer life span. During the opening and closing process of the disc, the seat is close to the disc to ensure stable opening and closing, and the viscous medium can also be scraped off.

    The design of the bottom cover can enable the disc to bring out the dirt in the pipeline and clean up the inside of the body in time.

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    Platform under actuator can be customized according to requirements., which allows to install electric/pneumatic actuators by different standards.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    Rubber and nylon packing material can effectively enhance the sealing between the gland and disc. Different materials can be selected according to the medium.

    The yoke is composed of thickened steel plates, which is enough to support the disc, platform, and actuator.

    There is a round hole on the disc, and its size is as same as the bore. Through the opening and closing of the disc, the round hole on the disc is completely detached from and coincides with the flow channel of the body, and it has the characteristic of cutting off viscous medium.

    There is no groove in the flow channel of the body, so the medium will not get stuck and clogged. And it has the characteristics of full-diameter flow, which is suitable for the pipeline of powder granular medium. Different materials can be selected according to the working condition. Two-piece structure is available as requested.

    The seat is designed as a replaceable structure, which has anti-wear and automatic compensation functions, so it has a longer life span. During the opening and closing process of the disc, the seat is close to the disc to ensure stable opening and closing, and the viscous medium can also be scraped off.

    The design of the bottom cover can enable the disc to bring out the dirt in the pipeline and clean up the inside of the body in time.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NRHigh elasticity-2085-5~70
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    FPM (Viton)Chemical and most oils resistance, (except ketones & esters)-20200-5~150
    PTFEHeat, cold, acid, alkali, organic solvents resistant-60180-45~150
    Ceramic fiberFire, high temperature resistance, low thermal conductivity-1961050-60~950
    Metal to metalHigh temperature, high pressure, wear, corrosion resistanceRefer to the metal material

    Dimensions

    Knife Gate Valve SG73-C Through Conduit's Drawing

    GB/T 9113 PN10

    DNLDD1D2bfn-Φd
    5048165125991834-18
    65481851451181838-18
    80512001601322038-18
    100512201801562038-18
    125572502101842238-18
    150572852402112238-22
    200703402952662438-22
    2507039535031926312-22
    3007644540037026412-22
    3507650546042926416-22
    4008956551548026416-26
    4508961556553028420-26
    50011467062058228420-26
    60011478072568234520-30
    70012789584079434524-30
    800127101595090136524-33
    90012711151050100138528-33
    100014912301160111238528-36
    120015614551380132844532-39
    140017116751590153048536-42
    160019819151820175052540-48
