Research: What Is a Knife Gate Valve?
A knife gate valve is a specialized type of industrial valve designed to handle thick, viscous, abrasive, or slurry-type media. With its sharp-edged gate that cuts through media like a blade, the knife gate valve is ideal for applications in mining, pulp and paper, wastewater treatment, chemical processing, and bulk material handling.
🔧 Knife Gate Valve Definition
A knife gate valve is a linear-motion valve that uses a flat gate or blade to cut through media and provide a tight shutoff. It’s particularly effective in systems with slurry, powder, pulp, or high solid content.
⚙️ How Does a Knife Gate Valve Work?
-
The gate slides down between two seat surfaces to stop flow, and lifts up to allow flow.
-
The knife-like edge of the gate cuts through solid particles or viscous materials.
-
Operated by manual handwheel, pneumatic cylinder, or electric actuator.
-
Typically unidirectional, but bi-directional knife gate valves are also available.
🏭 Applications of Knife Gate Valves
Knife gate valves are designed for on-off service, not throttling. They excel in:
-
Mining & minerals: tailings, slurry, sand-water mixture
-
Pulp & paper: pulp stock, fiber suspension
-
Wastewater treatment: sludge, sewage, grit
-
Power plants: ash handling, FGD systems
-
Bulk solids: powders, granules, pellets in silo discharge lines
🧪 Knife Gate Valve Material Options
Choosing the right material of construction is critical:
| Component | Common Materials | Application Suitability |
|---|---|---|
| Body | Cast iron, Carbon steel, Stainless steel | Varies by pressure and corrosion resistance |
| Gate (Blade) | 304/316 SS, Hard-coated alloy | Abrasive media, corrosive slurries |
| Seat | Metal seat, EPDM, PTFE, NBR | Soft seats for better sealing; metal for wear |
| Stem | Stainless steel or zinc-plated | Manual or actuated operation |
-
Face-to-face: MSS-SP-81 (U.S.), ISO 5752 (Europe)
-
Flange compatibility: ANSI, DIN, JIS, EN1092-1
-
Sizes: DN50 to DN1200 (2” to 48”), with custom sizes available
-
Pressure Ratings: PN10, PN16, Class 150
✅ Benefits of Knife Gate Valves
| Advantage | Details |
|---|---|
| Excellent in slurry or thick media | Gate cuts through pulp, grit, or sludge with minimal clogging |
| Lightweight & compact | Especially compared to standard wedge gate valves |
| Low-pressure drop | Full bore design ensures minimal flow resistance when fully open |
| Easy maintenance | Simple structure with few moving parts |
| Cost-effective | Affordable for large-size flow isolation in tough environments |
🏷️ Seallon Knife Gate Valves: Built for Harsh Applications

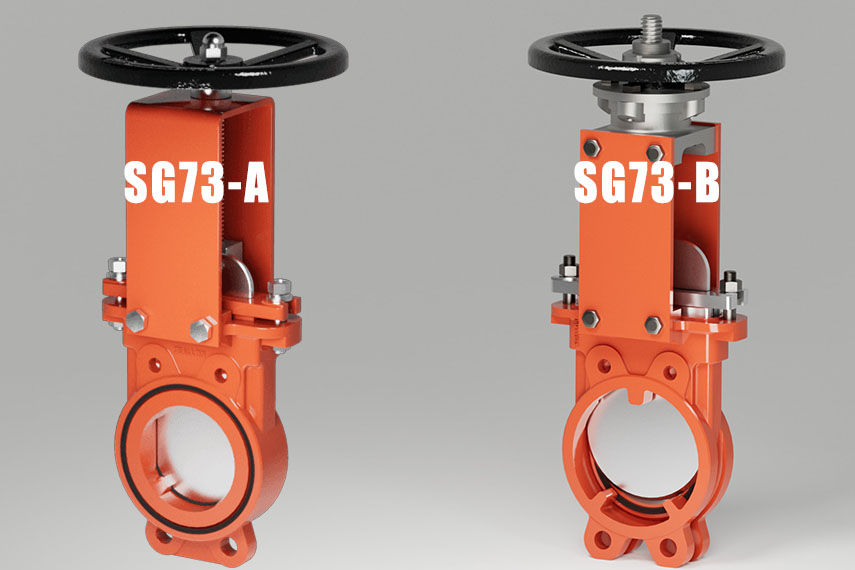

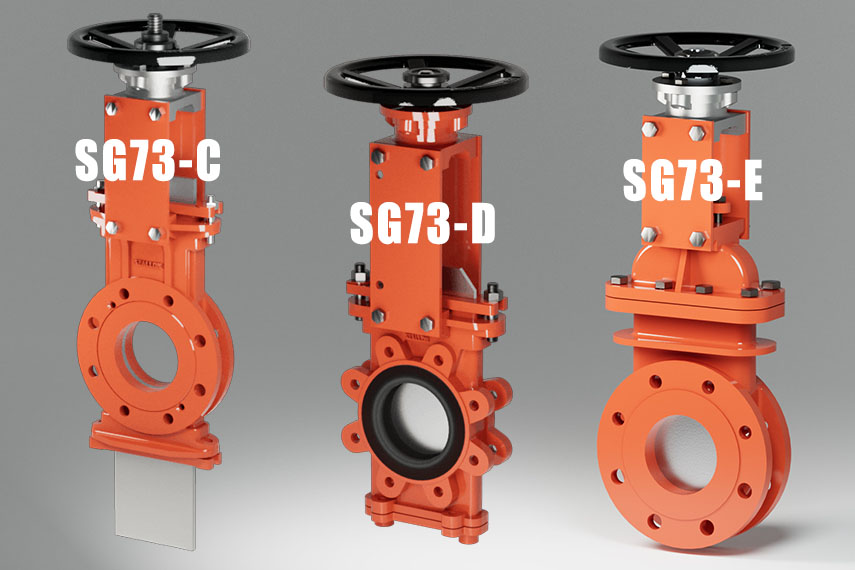

Seallon’s knife gate valve series SG73 are engineered to handle abrasive slurries, dense pulp, and corrosive wastewater in industrial settings. Our best-selling models include:
-
Unidirectional & bidirectional knife gate valves
-

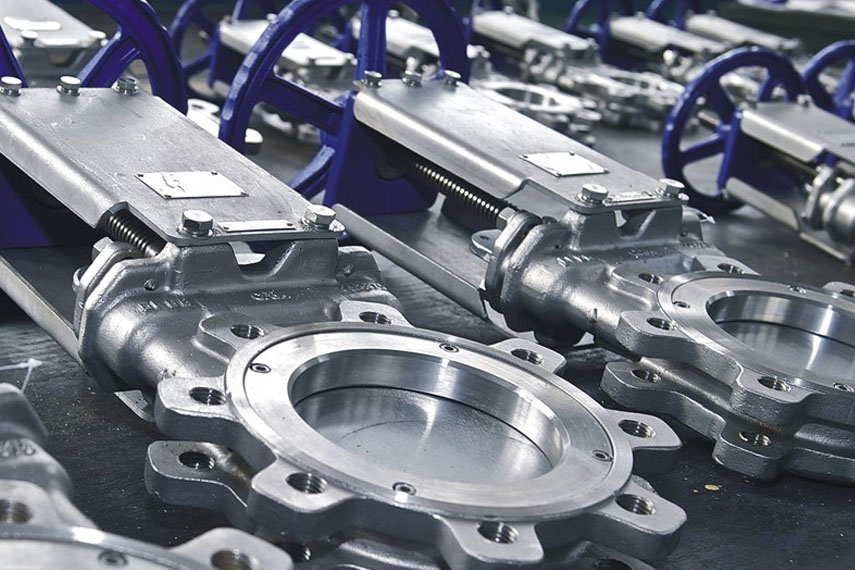

Lug type, wafer type, and double flange type knife gate valves
-
Pneumatic, electric, and manual actuators available
-
Size range: DN50 to DN1600
-
Custom coatings: epoxy, PTFE, ceramic, or nickel-plated gate
✅ Compliant with MSS-SP-81, ISO 5211 mounting pad, EN1092-1 flange drilling
