    • Flanged Diaphragm Valve SD41-P

    DN

    15~600 (1/2"~24")

    PN

    0.6~1.6 (Class150)

    Temperature Range

    -46°C~180°C

    Connection

    Flanged

    Installation Direction

    Bidirectional

    Design

    GB/T12239, BS5156

    Face to Face

    GB/T12221, BS5156, ISO5752, EN558, DIN3202

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501, ISO2084

    Top Connection

    ISO5211, GOST55510

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092, BS5156

    Body Materials

    GGG40, WCB, CF8, CF8M

    Diaphragm Materials

    FEP, PFA

    Stem Materials

    420, F6a, 304, 316

    Seat Materials

    GGG40, WCB, CF8, CF8M

    Features & Benefits

    SD41-P has small fluid resistance and can be used in medium containing hard suspended solids, corrosive and viscous slurry. Since the medium is only in contact with the body and diaphragm, there is no packing gland, and no leakage and corrosion from the stem part.

    Flanged Diaphragm Valve SD41-P

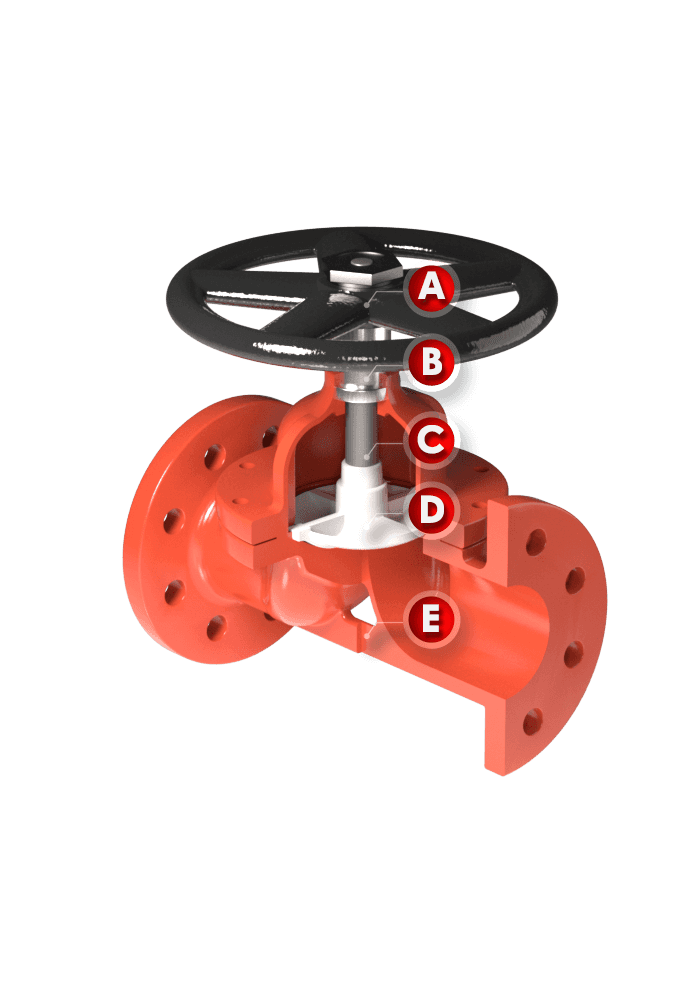

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and cast iron can be selected by requirements.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    It separates the inner cavity of the lower body and the upper bonnet, so that the stem, bonnet and other parts above the diaphragm can be protected from corrosion of the medium. Fluoroplastic and rubber can be selected according to the medium.

    Its simple structure, good sealing, corrosion resistance, and small fluid resistance make it more widely used in low-pressure, highly corrosive medium, and even those containing suspended matter. The body can be cast or welded，and the face-to-face dimension can be customized by requirements.

    The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

    The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and cast iron can be selected by requirements.

    Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

    It separates the inner cavity of the lower body and the upper bonnet, so that the stem, bonnet and other parts above the diaphragm can be protected from corrosion of the medium. Fluoroplastic and rubber can be selected according to the medium.

    Its simple structure, good sealing, corrosion resistance, and small fluid resistance make it more widely used in low-pressure, highly corrosive medium, and even those containing suspended matter. The body can be cast or welded，and the face-to-face dimension can be customized by requirements.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    FEP (F46)Chemical resistance, radiation resistance-20150-5~120
    PTFEHeat, cold, acid, alkali, organic solvents resistant-60180-45~150
    PFAExcellent chemical corrosion resistance, low friction coefficient-60200-45~180

    Dimensions

    Flanged Diaphragm Valve SD41-P's Drawing

    GB/T 9113 PN16

    DNLDD1D2bfn-Φd
    502101651251021634-18
    652501851451221838-18
    803002001601382038-18
    1003502201801582038-18
    1254002502101882238-18
    1504602852402122438-22
    20057034029526826312-22
    25068040535532030312-26
    30079046041037830412-26
