    • Flanged Ball Check Valve SC41

    DN

    50~600 (2"~24")

    PN

    1.0~1.6 (Class150~600)

    Temperature Range

    -10°C~110°C

    Connection

    Flanged

    Installation Direction

    Unidirectional

    Design

    JB/T8937

    Face to Face

    DIN3202 F6, EN558-1, JB/T8937

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501

    Top Connection

    None

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    GGG40, GGG50

    Ball Materials

    WCB

    Fastener Materials

    40#, 201, 304, 316

    Seat Materials

    EPDM, NBR

    Features & Benefits

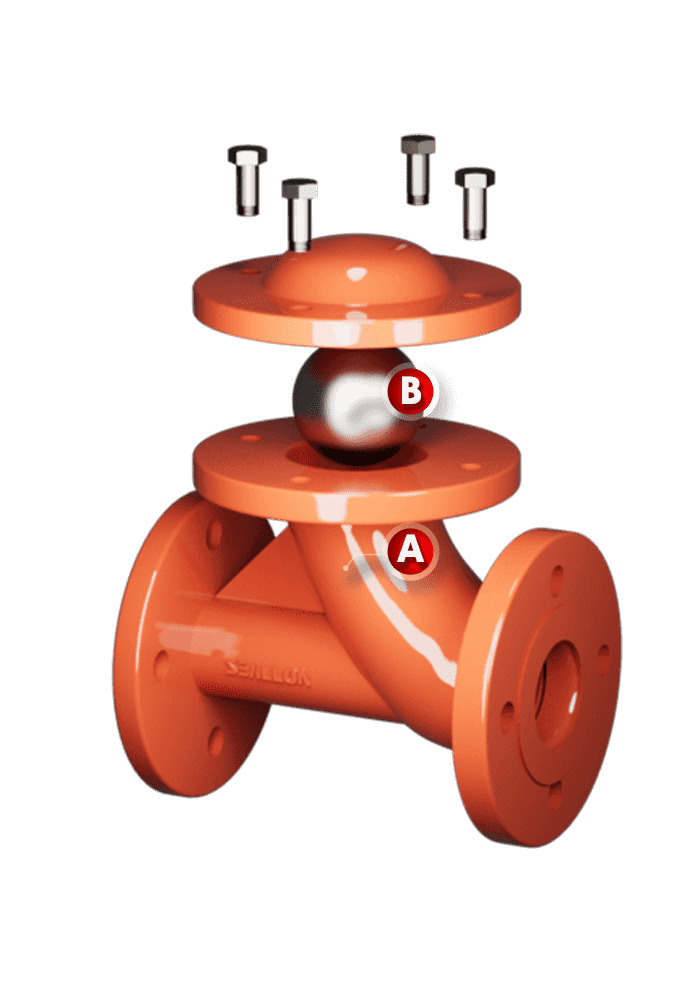

    The rubber ball of SC41 rolls up and down inside the body to open and shut the valve. When the pump starts, the medium under pressure pushes the rubber ball up, to allow medium passing through. When the pump stops, due to the pressure of backflow in the pipeline, the rubber ball is forced to roll to the end of the body, to shut the valve. The rubber ball is made of cast steel, with elastic rubber vulcanized to ensure the sealing and buffering effect.

    Flanged Ball Check Valve SC41

    The ball check valve is a check valve with multi-channel and multi-cone inverted fluid structure.

    It adopts hollow steel ball with rubber. The rubber with good elasticity can not only ensure sealing, but also reduce the damage to the pipeline system during valve closing.

    When the valve is opened, the conical body with holes can fix the steel ball, eliminating the pressure on the contact area between the rubber ball and the conical body. It is surface contact that reduces the hydraulic loss caused by the vibration of the rubber ball in the valve body.

    Stable operation, good sealing performance, long service life, low resistance coefficient and good shock absorption effect. Saving energy and preventing water hammer. Its requirements for water quality are not strict.

    The ball check valve is a check valve with multi-channel and multi-cone inverted fluid structure.

    It adopts hollow steel ball with rubber. The rubber with good elasticity can not only ensure sealing, but also reduce the damage to the pipeline system during valve closing.

    When the valve is opened, the conical body with holes can fix the steel ball, eliminating the pressure on the contact area between the rubber ball and the conical body. It is surface contact that reduces the hydraulic loss caused by the vibration of the rubber ball in the valve body.

    Stable operation, good sealing performance, long service life, low resistance coefficient and good shock absorption effect. Saving energy and preventing water hammer. Its requirements for water quality are not strict.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NRHigh elasticity-2085-5~70
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135

    Dimensions

    Flanged Ball Check Valve SC41's Drawing

    EN1092-2 PN16

    DNLDD1D2bfn-Φd
    50200165125991934-19
    652401851451181934-19
    802602001601321938-19
    1003002201801561938-19
    1253502502101841938-19
    1504002852402111938-23
    20050034029526620312-23
    25060040035531922312-28
    30070045541037024412-28
    35080052047042926416-28
    40090058052548028416-31
    450100064058554830420-31
    500115071565060931420-34
    600135084077072036520-37
