Research: What Is a Signal Butterfly Valve?

🔧 Signal Butterfly Valve – Definition & Features

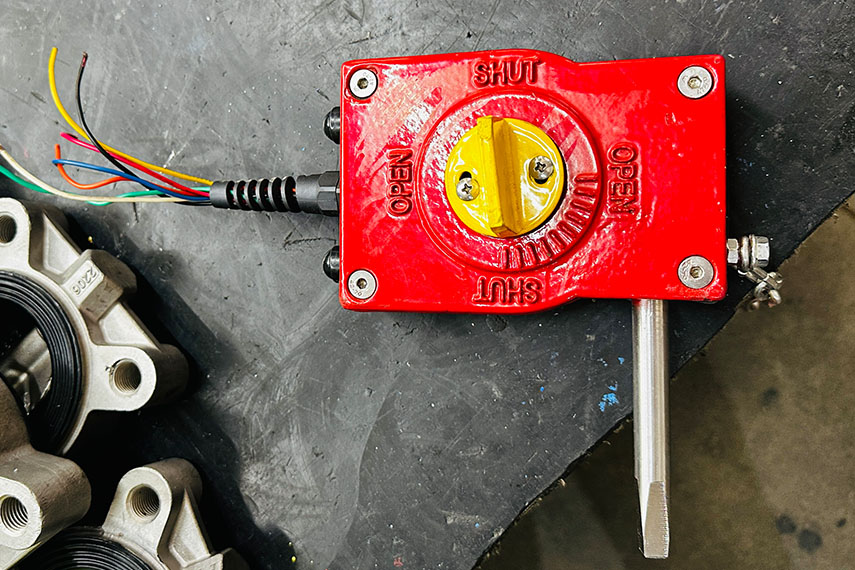

A signal butterfly valve is a manual or motor-operated valve that includes an electric or mechanical signal device (such as a limit switch box, micro switch, or proximity sensor) to indicate the valve’s open or closed position.

✅ Key Features:

⚙️ How Does a Signal Butterfly Valve Work?

1. Valve Operation: The valve opens or closes through a 90° rotation of the disc inside the pipe.

2. Signal Activation: As the disc moves, a limit switch or position sensor attached to the stem or gearbox is triggered.

3. Signal Output: The switch sends an electrical signal to the control room, fire alarm system, or building automation system (BAS).

4. Feedback Display: The valve's position can be displayed locally (mechanical indicator) and remotely (SCADA, DCS, or PLC system).

5.


🏭 Applications of Signal Butterfly Valves

Signal butterfly valves are used in systems that require both flow control and remote valve status feedback. Common industries include:

🔥 Fire Protection Systems

• Fire sprinkler riser control

• Monitored post-indicator valves (PIV)

• Used with fire alarm panels

• Keywords: signal butterfly valve fire protection, UL/FM listed alarm valve, sprinkler valve with switch

🏢 HVAC and Building Automation

• Chilled/hot water systems

• Automatic valve monitoring via BMS

• Keywords: signal valve for HVAC, BAS butterfly valve control

🏭 Water Treatment & Industrial Pipelines

• Valve status monitoring for safety interlocks

• Process fluid control in automated plants

• Keywords: position feedback valve for water plant, remote monitored valve

⚡ Power Plants and Energy

• Boiler feedwater control

• Steam pipelines with position monitoring

🛠️ Selection Considerations
