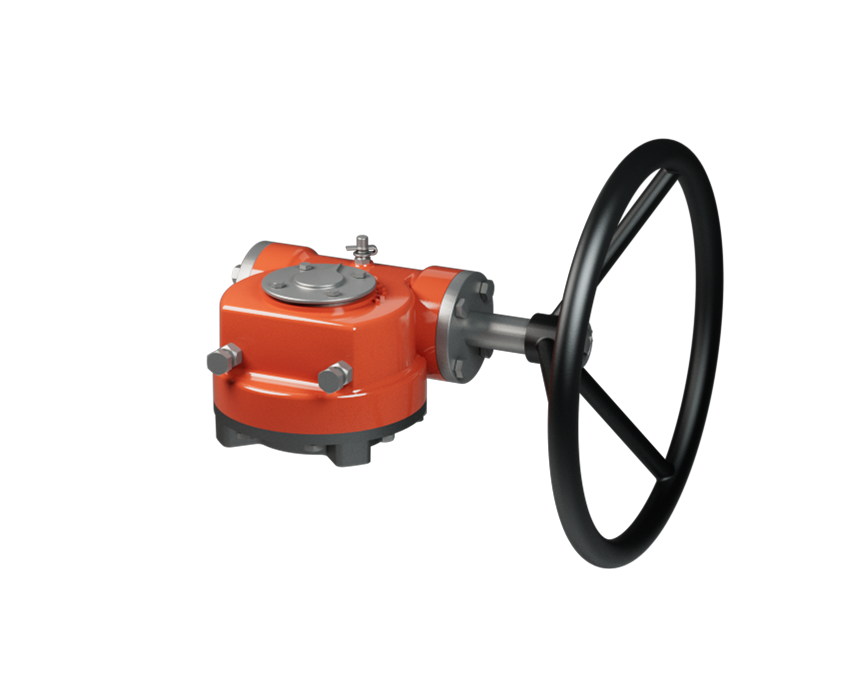

    • Single Stage Worm Gear S-1-WG

    Ratio

    34:1~65:1

    Max Output Torque

    50~350Nm

    Max Output Torque

    51~696Nm

    Connection

    F05~F35

    Max Stem Diameter

    30~120 (9x9~27x27)

    Design

    GB/T12223

    Gear Box Material

    GGG50, WCB, LCB, LC1, CF8, CF8M, A536 65-45-12

    Ingress Protection Rating

    IP55, IP65, IP67, IP68

    Features & Benefits

    S-1-WG is quarter turn manual gear actuator. Suit to be used in butterfly valves, ball valves, plug valves etc.

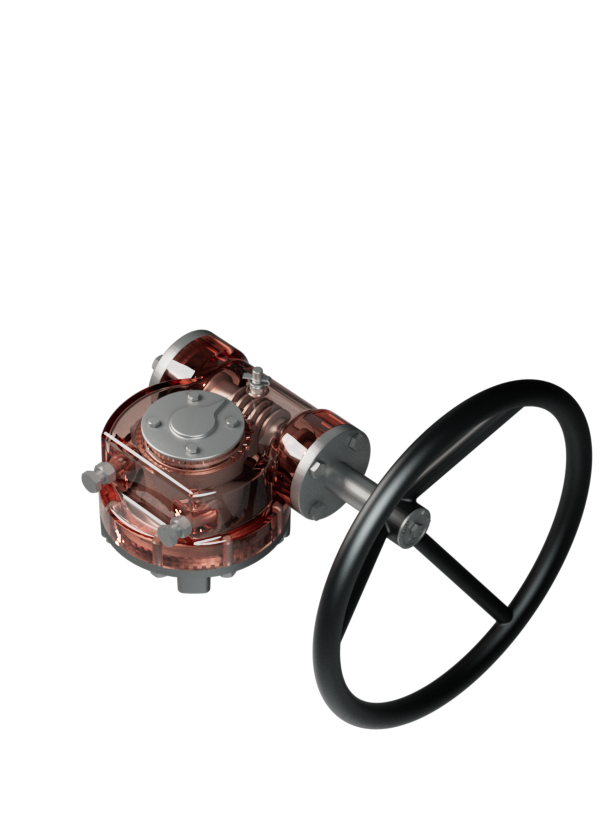

    Single Stage Worm Gear S-1-WG

    The gear box is made by precise casting, which has new design and nice performance. This worm gear is has self-locking structure with tapered roller bearing, so that it can be operated more flexibly with higher efficiency. The output torques can be selected according to the torques of valves. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.

    The gear box is made by precise casting, which has new design and nice performance. This worm gear is has self-locking structure with tapered roller bearing, so that it can be operated more flexibly with higher efficiency. The output torques can be selected according to the torques of valves. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    LCB-----46~345
    LC1-----59~345
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)

    Dimensions

    Please check the "actuator-connection datasheet" in "Download"
