    • Single Stage Bevel Gear S-1-BG

    Ratio

    2.35:1~23:1

    Max Output Torque

    360~6000Nm

    Max Thrust

    43000~630000N

    Connection

    F12~F35

    Max Stem Diameter

    25~110

    Design

    GB/T12222

    Gear Box Material

    GGG50, WCB, LCB, LC1, CF8, CF8M, A536 65-45-12

    Ingress Protection Rating

    IP55, IP65, IP67, IP68

    Features & Benefits

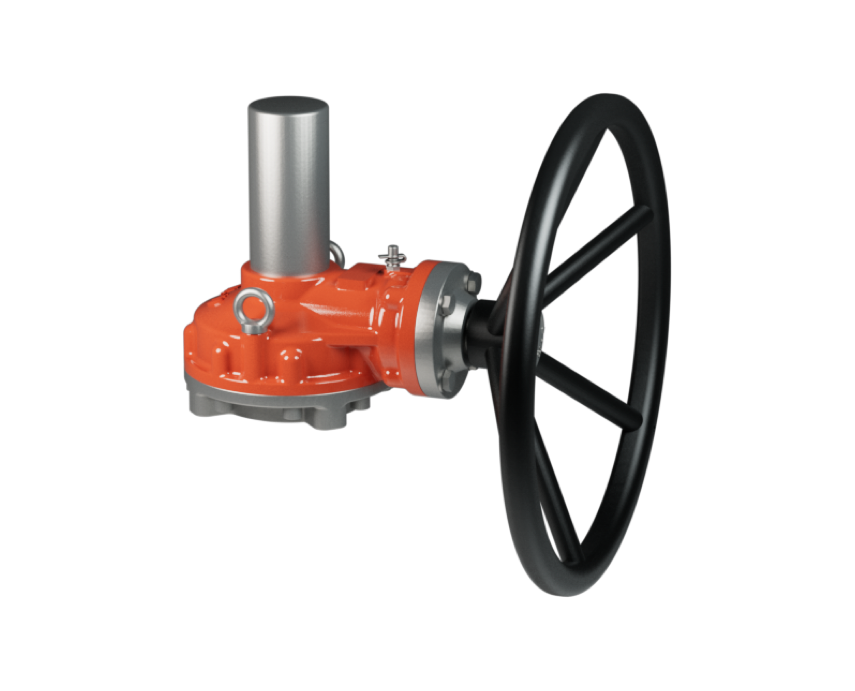

    S-1-BG is multi turn manual gear actuator. Suit to be used in gate valves, knife gate valves, globe valve etc.

    Single Stage Bevel Gear S-1-BG

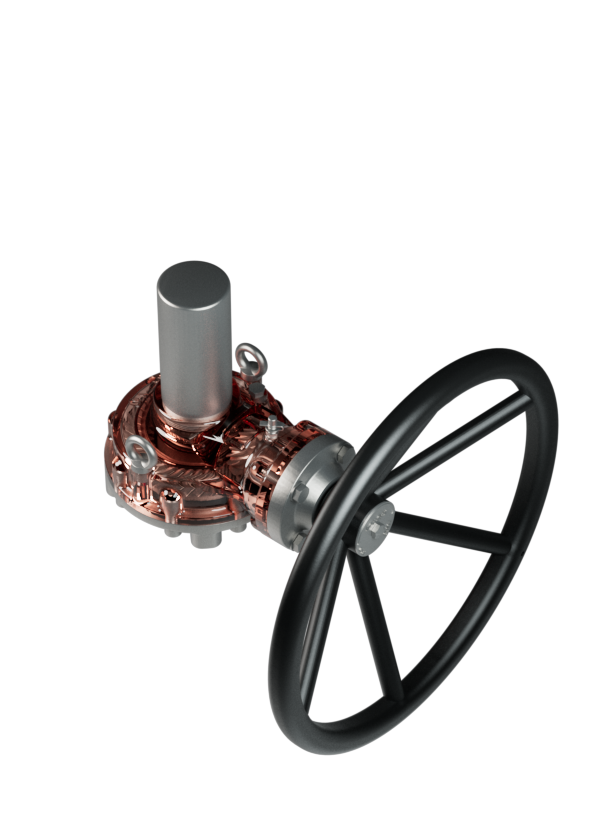

    By using spiral bevel gears and thrust bearing, this serie can run smoothly, wih high output torque and high efficiency. Handwheel and stem protection cover can be customized. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.

    By using spiral bevel gears and thrust bearing, this serie can run smoothly, wih high output torque and high efficiency. Handwheel and stem protection cover can be customized. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    LCB-----46~345
    LC1-----59~345
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)

    Dimensions

    Please check the "actuator-connection datasheet" in "Download"
