Research: What Types of Electric Valve Actuators Are There?
In modern automated flow control systems, electric valve actuators play a vital role in enabling remote operation, precision modulation, and fail-safe performance across industries like oil & gas, HVAC, water treatment, and power generation.
⚙️ What Is an Electric Valve Actuator?
An electric valve actuator is a device that uses an electric motor to open, close, or modulate a valve. It converts electrical energy into mechanical torque to operate valves such as ball valves, butterfly valves, globe valves, and plug valves.
🔧 Types of Electric Valve Actuators

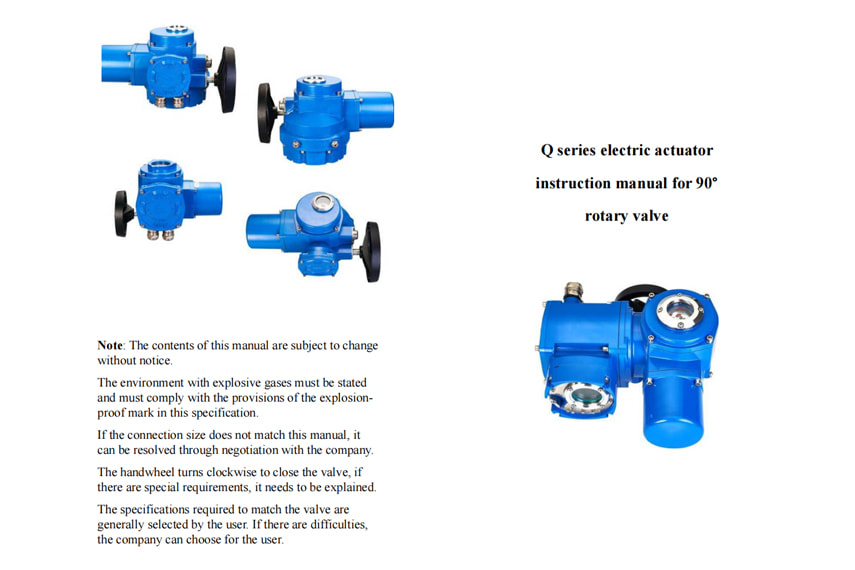

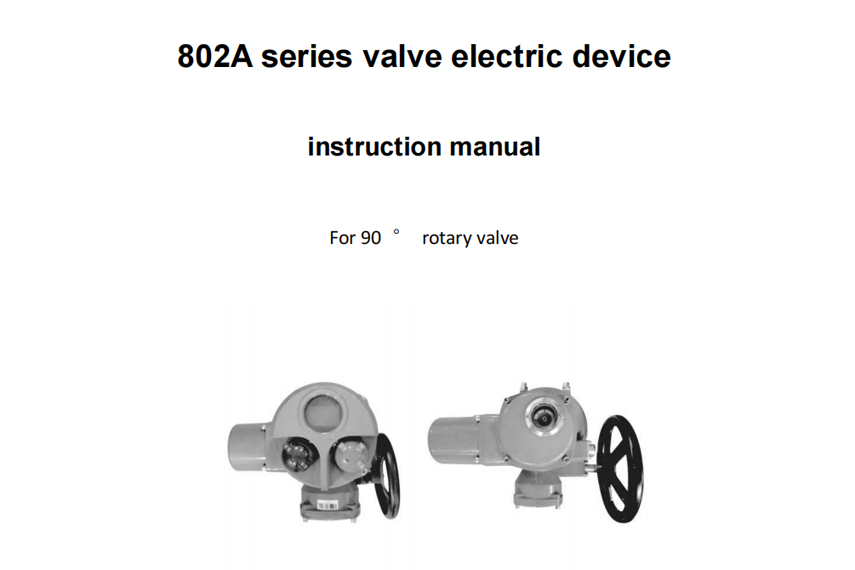

1. On/Off Electric Actuators (Quarter-Turn)
-
Function: Fully open or fully close a valve — no intermediate control
-
Common with: Ball valves, butterfly valves
-
Features: Simple wiring, compact design, low cost
2. Modulating Electric Actuators
-
Function: Precisely control valve position based on a 4–20 mA or 0–10 V analog signal
-
Used for: Flow control, pressure regulation
-
Applications: HVAC, water systems, process automation
3. Multi-Turn Electric Actuators
-
Function: Rotate stem multiple turns to operate rising stem valves
-
Valves Supported: Gate valves, globe valves
-
Torque: High torque output for large, high-pressure valves

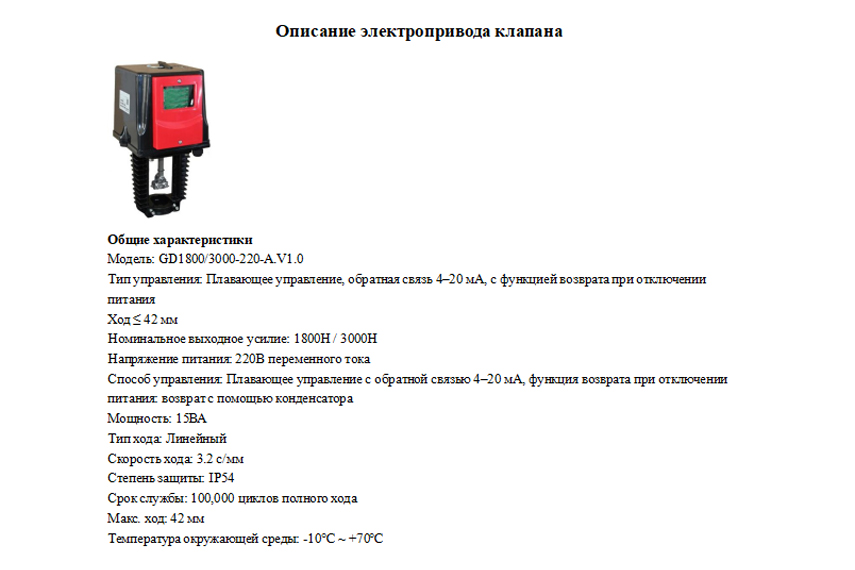

4. Linear Electric Actuators
-
Function: Provide linear motion instead of rotation
-
Suited for: Globe valves, diaphragm valves
-
Control Modes: On/Off, Modulating, Fail-Safe
✨ Additional Smart Features of Electric Actuators
Modern electric actuators may include:
| Feature | Function |
|---|---|
| Position Feedback | Provides live valve position via analog/digital signal |
| Torque Sensing | Protects valve and actuator from overload |
| Manual Override | Enables manual control during power failure |
| Fail-Safe Return (Battery) | Actuator automatically moves to a safe position during power loss |
| Local Control Panel (LCP) | On-site open/close and parameter configuration |
| Digital Communication | Integration with protocols like Modbus, Profibus, or HART |
📋 Electric Actuator Selection Guide
When choosing the right electric actuator for your valve, consider:
| Parameter | Recommendation |
|---|---|
| Valve Type | Quarter-turn actuators for ball/butterfly valves; Multi-turn for gate/globe valves |
| Control Type | Use modulating for flow control; on/off for isolation |
| Torque Requirement | Always check valve torque + safety factor |
| Power Supply | 24VDC, 110VAC, 220VAC, or 3-phase options depending on application |
| Protection Level | Use IP67/IP68 for outdoor or wet environments |
| Environment | Consider explosion-proof models for hazardous areas (ATEX, IECEx certified) |
🏷️ Seallon Electric Valve Actuator: Smart, Safe, Efficient
Seallon’s electric actuators are engineered for durability and precision across demanding industrial environments. Available models include:
-
Quarter-turn and multi-turn series
-
On/Off or Modulating control (4–20 mA or RS485 Modbus)
-
IP67 waterproof protection with optional EX-proof version
-
Manual override, LED status display, self-locking gear
-
Compatible with butterfly, ball, and globe valves
✅ Applications: Chemical plants, HVAC, water pumping stations, food processing, fire protection systems
