Research: High-Temperature Butterfly Valves: Selection and Manufacturing Guide

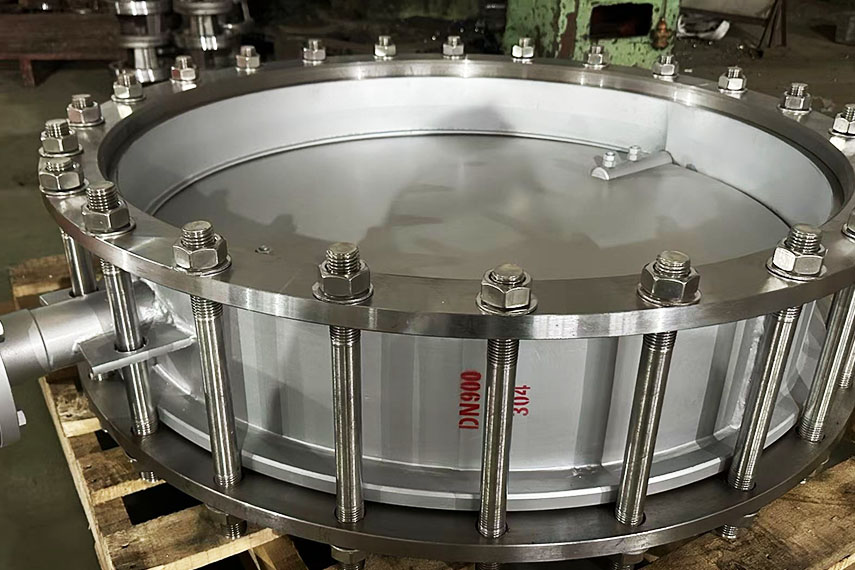

🔥 What Is a High-Temperature Butterfly Valve?
A high-temperature butterfly valve is engineered to withstand service temperatures ranging from 250°C to over 800°C, depending on the materials and design configuration. Unlike standard elastomer-seated valves, high-temp variants use metal seats, fire-safe designs, and heat-resistant alloys.
🔧 Common Types of High-Temperature Butterfly Valves
| Valve Type | Description | Max Temperature | Keywords |
|---|---|---|---|
| Double Eccentric Butterfly Valve | Offset disc reduces seat wear; suitable for medium-high temperatures | Up to 600°C | high temp double offset butterfly valve |
| Triple Eccentric Butterfly Valve | Conical disc & metal seat eliminate friction during operation; ideal for severe service | Up to 900°C | metal seated triple offset butterfly valve, high temp fire-safe butterfly valve |
| Lug / Wafer / Flanged Types | Refers to connection style | Depends on structure & materials | lug type butterfly valve for steam, wafer high temperature valve |

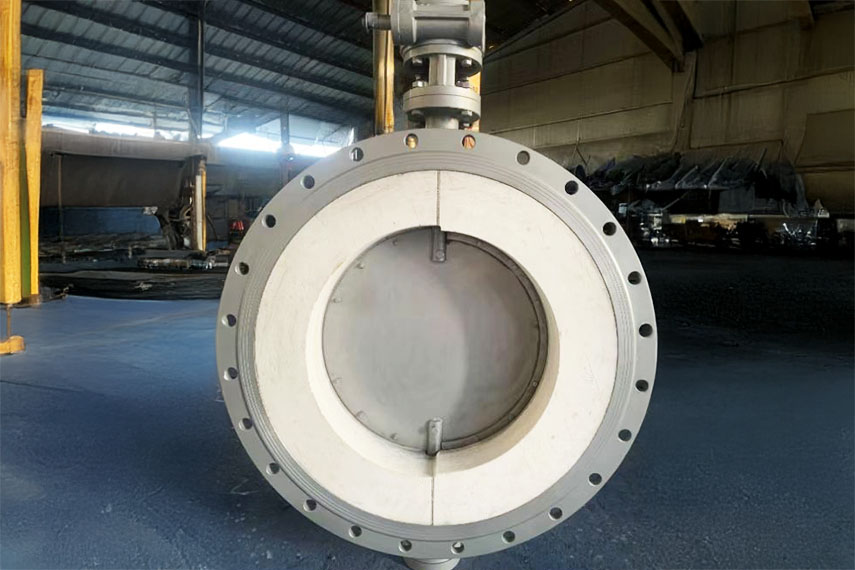

🏗️ Structural Components & Material Selection
To ensure thermal durability, each component of the butterfly valve must be carefully selected based on its exposure to heat, corrosive media, and mechanical load.
1. Valve Body
-
Materials:
-
WCB (Carbon Steel): ≤ 425°C
-
WC6 / WC9 (Chromoly Steels): Up to 650°C
-
Stainless Steel 304H/316H/310S: Up to 870°C
-
Inconel, Hastelloy: >900°C
-
2. Disc (Valve Plate)
-
Materials:
-
304H / 316H / 310S
-
17-4PH Stainless
-
Inconel 625 / 718 for extreme heat/corrosion
-
3. Shaft (Valve Stem)
-
Materials:
-
17-4PH, XM-19, or alloy steel with heat treatment
-
Must withstand thermal expansion and torque
-
4. Seat / Sealing Surface
-
Types:
-
Metal-to-metal seal (Stellite, hard-faced stainless)
-
Graphite laminated gaskets or spiral wound
-
-
Materials:
-
Stellite 6, Inconel overlay, SS 316L + graphite
-
🌡️ Suitable Applications & Media
| Application | Media | Recommended Valve |
|---|---|---|
| Power Plants | Superheated steam | Triple offset with metal seat |
| Petrochemical | Hot hydrocarbons, flare gas | Alloy steel triple offset |
| Steel Industry | Combustion gas, furnace air | SS disc with graphite packing |
| Thermal Oil Systems | Heat transfer oil up to 400°C | Double offset with metal or graphite seat |
🏭 Manufacturing Process Overview
-
Material Procurement
Certified high-temperature alloys from approved suppliers -
Casting or Forging
Body and disc made via sand casting, investment casting, or forging -
CNC Machining
Precision machining of sealing surfaces and tolerances -
Hard Facing (Optional)
Overlay welding of seat or disc with Stellite or Inconel -

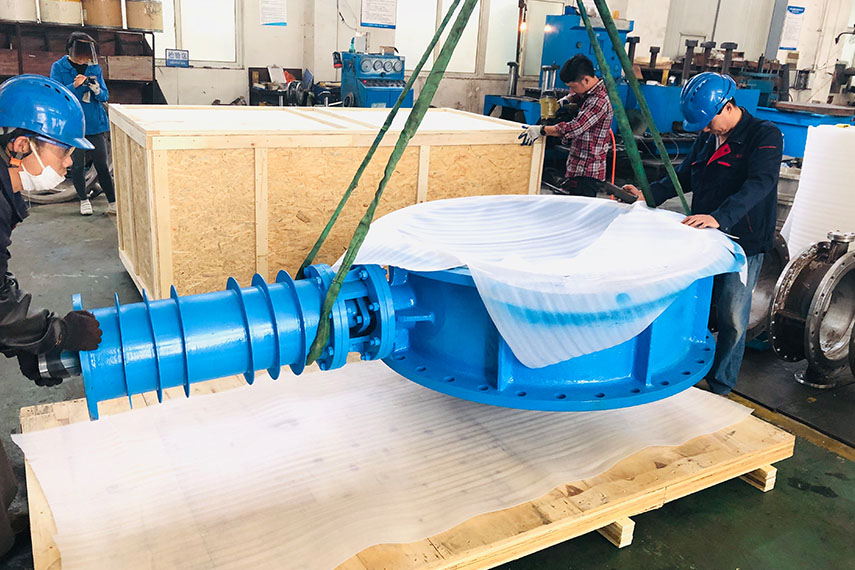

Assembly & Torque Testing
Proper stem-disc connection with torque preload -
Seal Testing (API 598 / EN 12266)
High-temperature and pressure leak testing -
Surface Coating / Heat Treatment
Anti-corrosion coatings or stress-relief annealing -
Documentation & Certification
MTCs, pressure test reports, PMI if required
⚠️ Design and Application Considerations
-

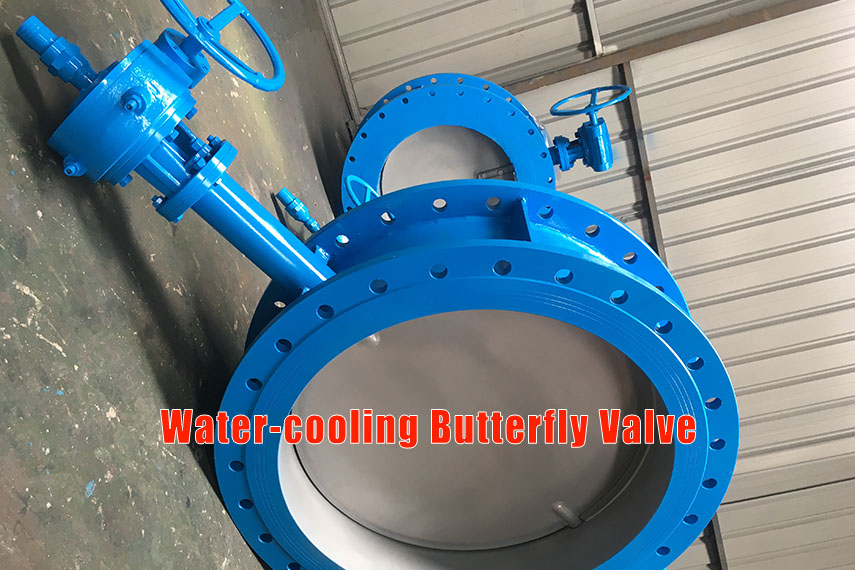

Thermal Expansion Compensation: Use extended stems and live-loaded packing for elevated temperatures.
-
Fire-Safe Design: Ensure compliance with API 607 or ISO 10497 standards.
-
Seat Selection: Avoid soft seats like PTFE; choose metal or graphite options.
-
Actuation: High-temp valves often require gearbox or pneumatic actuators with heat-resistant brackets.
