    • Universal Flange Adaptor

    DN

    50~800 (2"~32")

    PN

    1.0~1.6

    Temperature Range

    -10°C~110°C

    Connection

    Flanged

    Installation Direction

    Unidirectional

    Coating

    EN30677

    Flange Drilling

    EN1092

    Inspection

    EN12266

    Body Materials

    GGG40, GGG50

    Fasteners Materials

    Galvanized steel, 201, 304, 316, Dacromet

    Coating Materials

    Standard, WRAS

    Sealing Materials

    NBR, EPDM

    Features & Benefits

    UFA series are designed to accommodate plain ended pipes with different outside diameters, thus reduces the need for stockholding, as one single coupling is able to connect diferent pipes materials such as ductile iron,steel. PVC, AC and others.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135

    Dimensions

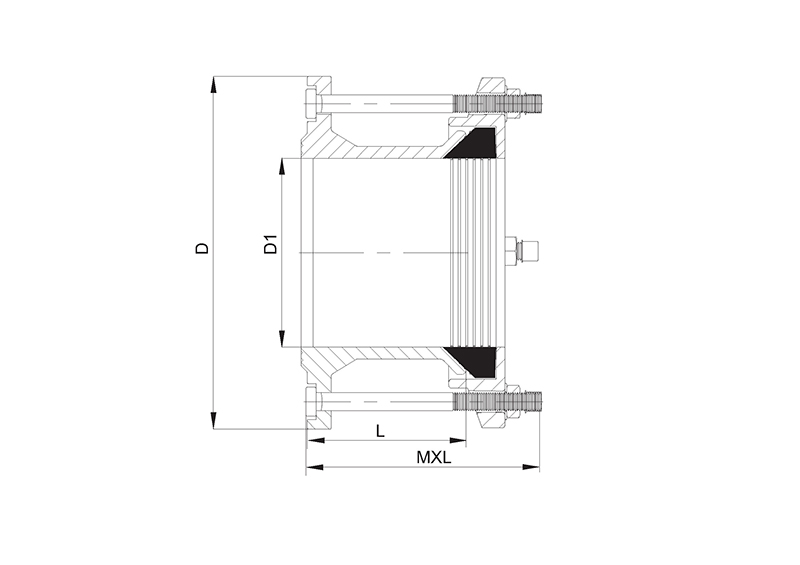

    Universal Flange Adaptor's Drawing
    DNPIPELDD1MxLn (bolt)
    4048-607515064M12x1302
    5059-727516577M12x1302
    6572-857518590M12x1302
    8088-10376185108M12x1304
    100108-12878218133M12x1304
    125132-14678250158M12x1304
    150158-18280272187M12x1304
    175192-21085312215M12x1304
    200218-23585335241M12x1304
    225235-25285355272M12x1304
    250272-28990405295M12x1306
    300322-33990460345M12x1306
    300315-33290460338M12x1306
    350386-415110510393M16x1808
    350374-391110510382M16x1808
    400425-442110580444M16x1808
    400418-435110580432M16x1808
    450476-493115640498M16x18010
    500527-544120690548M16x18010
    600630-647130820650M16x18010
