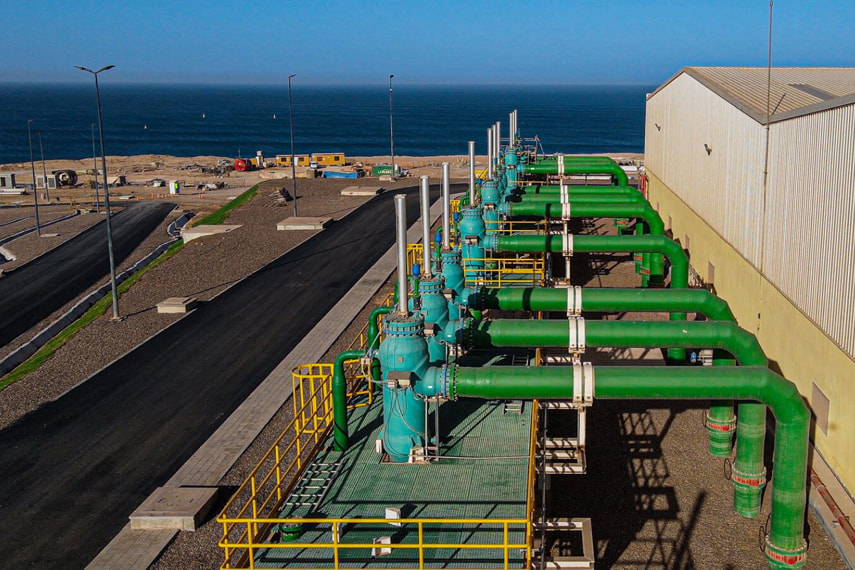

    • Wafer Swing Check Valve SC74

    DN

    50~600 (2"~24")

    PN

    1.0~4.0 (Class150~300)

    Temperature Range

    -59°C~560°C

    Connection

    Wafer

    Installation Direction

    Unidirectional

    Design

    JB/T8937

    Face to Face

    JB/T8937

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501

    Top Connection

    None

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Disc Materials

    WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Stem Materials

    420, F6a, 304, 316

    Seat Materials

    420, Stellite alloy, Hastelloy, Inconel, Monel, PTFE, Viton

    Features & Benefits

    SC74 adopts the swing-type structure with small face-to-face dimension, which is widely used and more economical.

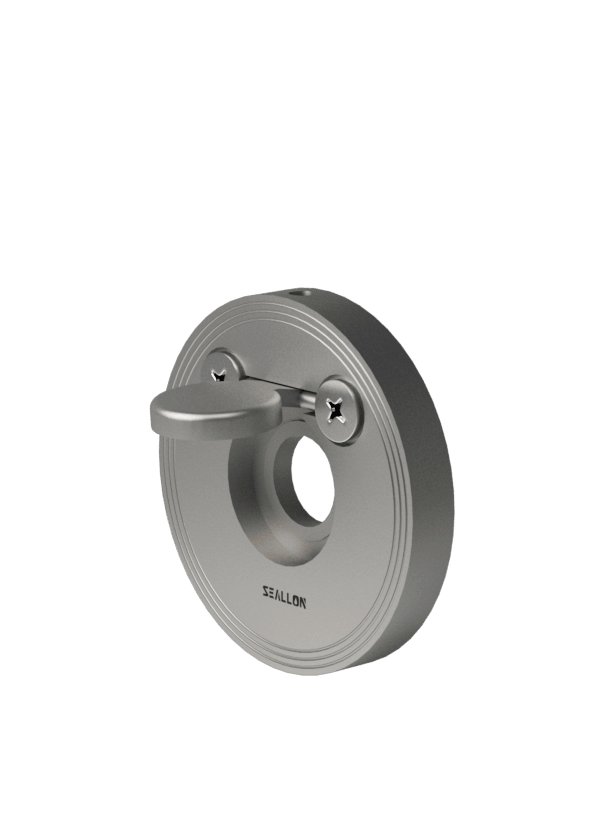

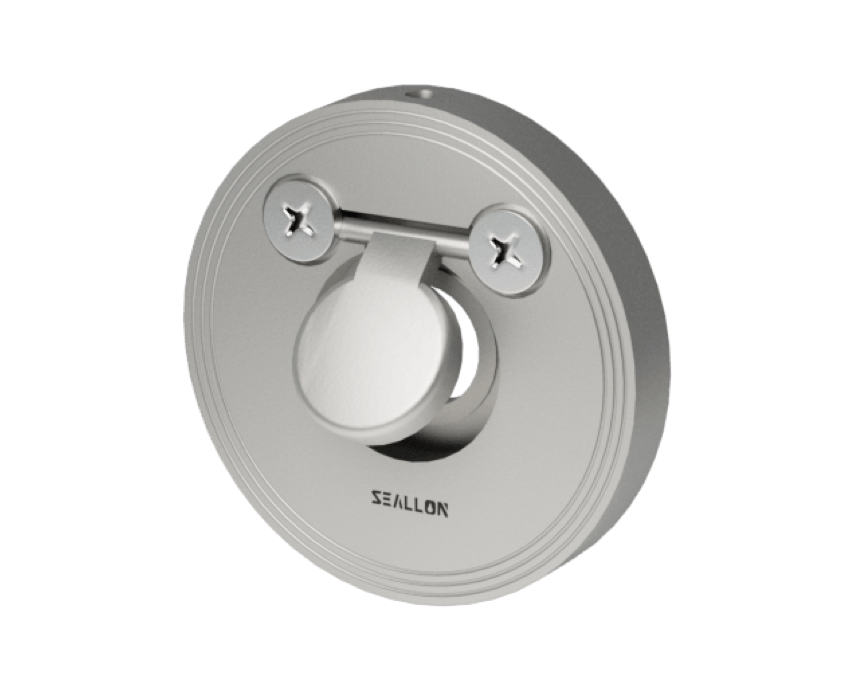

    Wafer Swing Check Valve SC74

    A variety of materials are available. It is more suitable for horizontal installation and small diameters. Its shorter length greatly reduces the production and maintenance costs of the check valve.

    The disc is made of pure metal, which features high temperature resistance, high processing precision, wear resistance. And after the disc swings up, it has little influence on the flow of the pipeline.

    Resilient seat and metal seat can be selected according to the medium.

    A variety of materials are available. It is more suitable for horizontal installation and small diameters. Its shorter length greatly reduces the production and maintenance costs of the check valve.

    The disc is made of pure metal, which features high temperature resistance, high processing precision, wear resistance. And after the disc swings up, it has little influence on the flow of the pipeline.

    Resilient seat and metal seat can be selected according to the medium.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135
    FPM (Viton)Chemical and most oils resistance, (except ketones & esters)-20200-5~150
    PTFEHeat, cold, acid, alkali, organic solvents resistant-60180-45~150
    Metal to metalHigh temperature, high pressure, wear, corrosion resistanceRefer to the metal material

    Dimensions

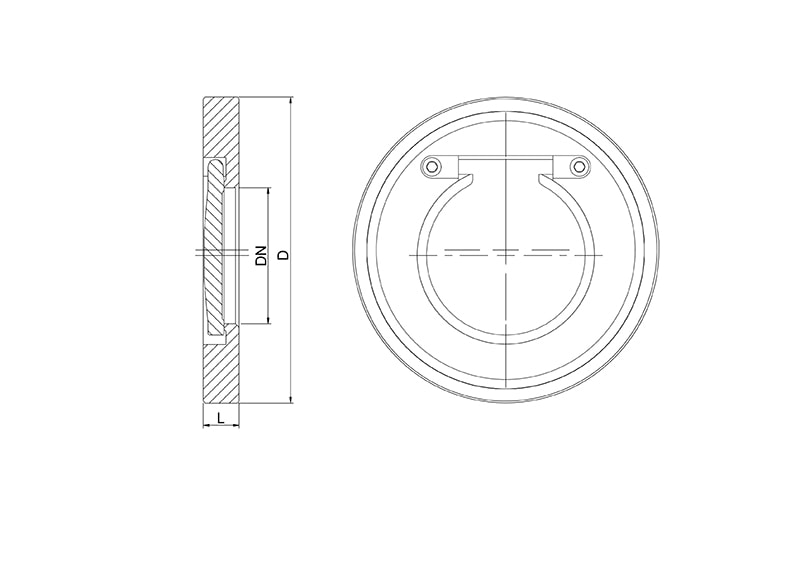

    Wafer Swing Check Valve SC74's Drawing
    DNLD
    5015104
    6515125
    8016140
    10016160
    12517185
    15019220
    20026270
    25029331
    30038386
    35038446
    40048495
    45048558
    50058620
    60068732
    70070804
    80075912
    900751012
    1000901126
