Research: What Is a Sanitary Butterfly Valve?
A sanitary butterfly valve — also called a hygienic butterfly valve — is a specialized flow control device designed for clean-in-place (CIP) and sterile processing environments. It is widely used in food & beverage, pharmaceutical, biotechnology, and dairy industries where hygiene, cleanability, and smooth fluid flow are essential.
✅ Key Features of Sanitary Butterfly Valves
| Feature | Description |
|---|---|
| Hygienic Design | Smooth, crevice-free surfaces prevent bacterial growth |
| Quick Disassembly | Tool-free clamp connections for easy cleaning and maintenance |
| Polished Interior Finish | Electro-polished or mechanically polished to Ra ≤ 0.4 µm |
| Compact Structure | Lightweight and space-saving design |

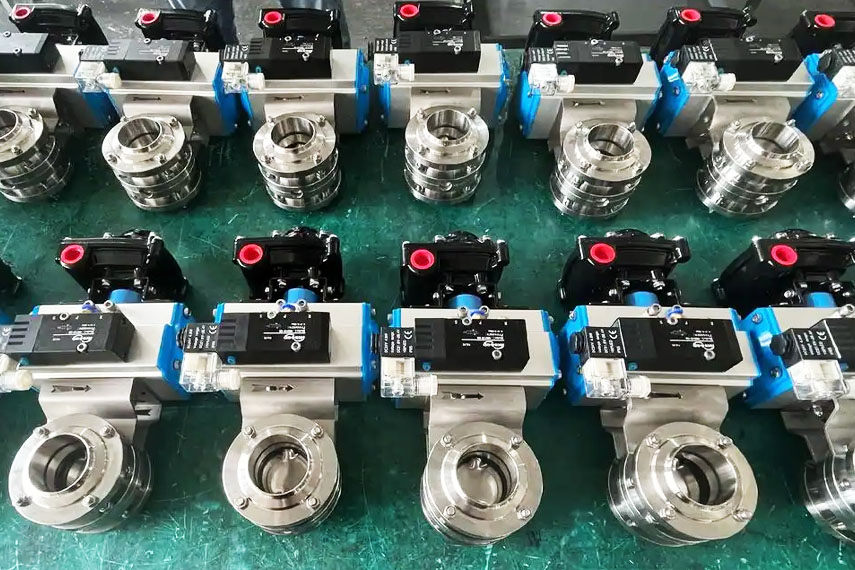

| Manual or Automatic | Available in manual handle, pneumatic, or electric actuator versions |
| Compliance | Meets 3A, FDA, EHEDG, and ISO sanitary standards |
| Sealing | FDA-approved EPDM, VMQ (silicone), or FKM (Viton) seals for sanitary applications |
⚙️ Working Principle of a Sanitary Butterfly Valve

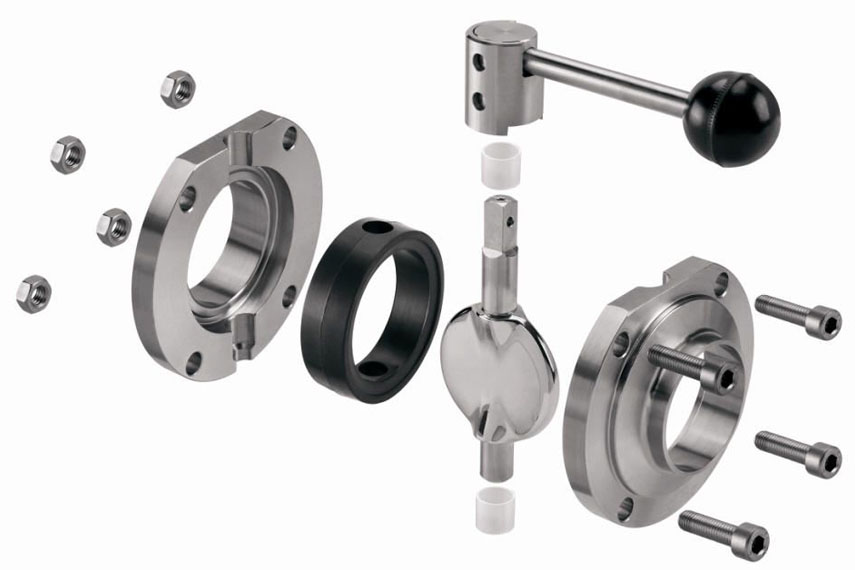

A sanitary butterfly valve operates as a quarter-turn valve using a disc mounted on a rotating shaft. Turning the handle or actuator rotates the disc to open or close the flow.
-
Open Position: The disc is parallel to the flow, allowing full, unrestricted flow.
-
Closed Position: The disc seals against the elastomer liner or seat, stopping the flow completely.
-
Intermediate Position: Allows for partial flow (though not ideal for throttling in hygienic systems).
🏭 Common Applications of Sanitary Butterfly Valves
Sanitary butterfly valves are used where sterile conditions, easy maintenance, and non-contaminating materials are required.
🥛 Dairy & Beverage Industry
-
Milk, juice, wine, beer transfer lines
-
CIP and SIP loops
💊 Pharmaceutical & Biotech
-
Pure water systems (PW, WFI)
-
Bioreactor and fermentation pipelines
🍝 Food Processing
-
Syrups, sauces, oils, chocolate
-
Washdown-friendly equipment
🌿 Cosmetics & Personal Care
-
Shampoo, lotion, fragrance pipelines
-
GMP-compliant piping systems
🛠️ Connection Types & Material Options
✅ Connection Types:
-
Tri-Clamp / Tri-Clover
-
Weld Ends (Butt-weld / Orbital weld)
-
Threaded (DIN, ISO, SMS standards)
✅ Common Materials:
| Component | Material |
|---|---|
| Body & Disc | SS304, SS316L (most common) |
| Seals | EPDM, Viton (FKM), Silicone (VMQ), PTFE |
| Actuator Housing | Stainless steel or anodized aluminum |
