    • Flanged Swing Check Valve SC44

    DN

    50~600 (2"~24")

    PN

    1.0~16.0 (Class150~2500)

    Temperature Range

    -59°C~560°C

    Connection

    Flanged

    Installation Direction

    Unidirectional

    Design

    GB/T12236, BS1868

    Face to Face

    GB/T12221, ASME B16.10

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259, DIN2501

    Top Connection

    None

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    GGG40, GGG50, WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Disc Materials

    GGG40, GGG50, WCB, LCC, LC1, C5,WC6, CF8, CF8M, 321, 316Ti, 904L, 310S, Duplex Stainless Steel

    Stem Materials

    420, F6a, 304, 316

    Seat Materials

    NBR, EPDM, 420, Stellite alloy, Hastelloy, Inconel, Monel

    Features & Benefits

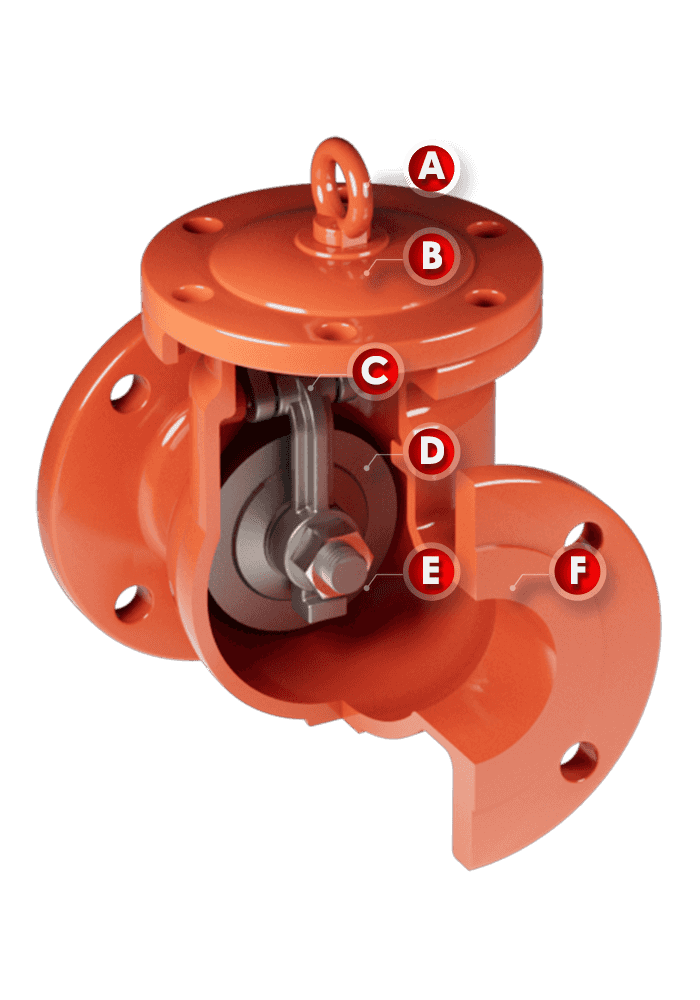

    SC44 adopts a built-in rocker swing type structure. All the opening and closing parts of the valve are installed inside the valve body without other leakage points.

    Flanged Swing Check Valve SC44

    It is convenient to move and install.

    By opening the valve cover, it’s easy to replace the internal parts of the valve, such as the disc, stem and etc.

    The arm is the connection point between the stem and disc, and its wear resistance and corrosion resistance are the primary factors for material selection.

    The disc is made of pure metal, which features high temperature resistance, high processing precision, wear resistance. And after the disc swings up, it has little influence on the flow of the pipeline.

    The hard metal-to-metal sealing seat can be applied to high temperature and high pressure medium. The seat can be surfacing welding alloy steel or other materials with high wear resistance and corrosion resistance.

    A variety of materials are available. It is more suitable for horizontal installation and large diameters.

    It is convenient to move and install.

    By opening the valve cover, it’s easy to replace the internal parts of the valve, such as the disc, stem and etc.

    The arm is the connection point between the stem and disc, and its wear resistance and corrosion resistance are the primary factors for material selection.

    The disc is made of pure metal, which features high temperature resistance, high processing precision, wear resistance. And after the disc swings up, it has little influence on the flow of the pipeline.

    The hard metal-to-metal sealing seat can be applied to high temperature and high pressure medium. The seat can be surfacing welding alloy steel or other materials with high wear resistance and corrosion resistance.

    A variety of materials are available. It is more suitable for horizontal installation and large diameters.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    WCC0.50.50.2--29~425
    WC10.350.50.45~0.65-≤455
    WC50.5~0.90.6~10.9~1.2-≤565
    WC61~1.5-0.45~0.65-≤595
    WC92~2.75-0.9~1.2-≤595
    C54~6.5-0.45~0.65-≤650
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)
    CF317~218~120.5-≤425
    CF3M17~219~132~3-≤455
    32117~199~12-0.5≤540 (700)
    904L19~2124~26---165~600
    316Ti16~1810~14-0.7-165~600
    310S24~2619~22--≤850
    LCB-----46~345
    LCC-----46~345
    LC1-----59~345

    Dimensions

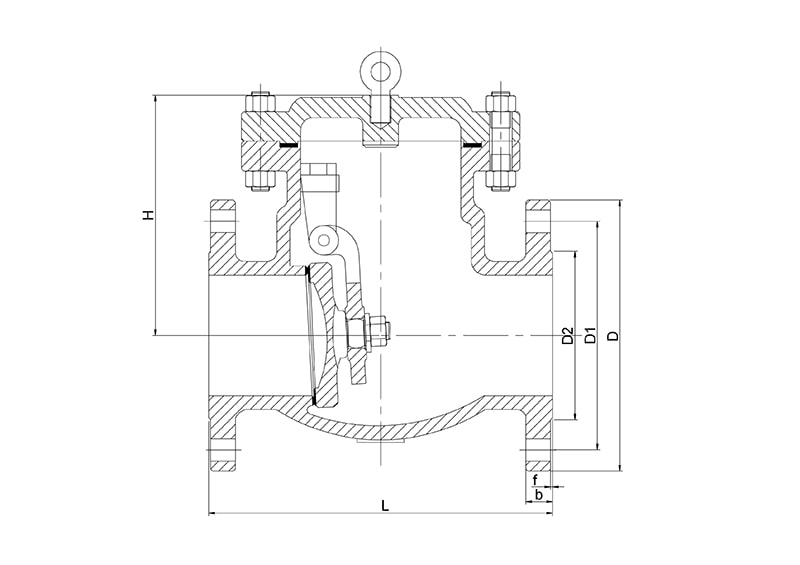

    Flanged Swing Check Valve SC44's Drawing

    GB/T 9113 PN16

    DNLDD1D2bfn-Φd
    502301651251021634-18
    652901851451221838-18
    803102001601382038-18
    1003502201801582038-18
    1254002502101882238-18
    1504802852402122438-22
    20055034029526826312-22
    25065040535532030312-26
    30075046041037830412-26
    35085052047043834416-26
    40095058052549036416-30
    450105064058555040420-30
    500115071565061044420-33
    600135084077072548520-36
