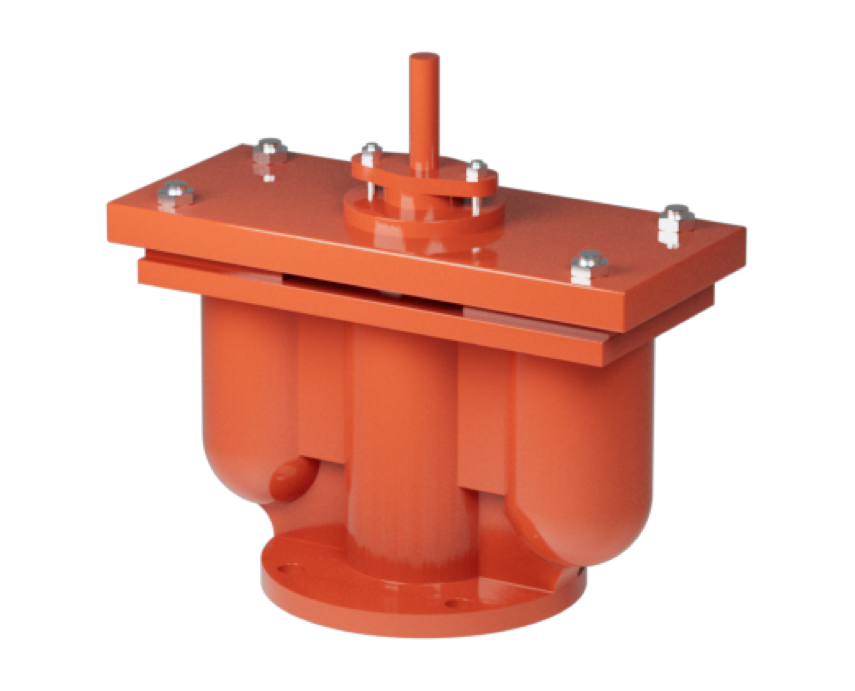

  • Flanged Composite Dual Port Exhaust Valve SA45

    DN

    50~200 (2"~8")

    PN

    1.0

    Temperature Range

    -10°C~80°C

    Connection

    Flanged

    Installation Direction

    Unidirectional

    Design

    CJ/T217, GB/T12227

    Face to Face

    GB/T12221, BS EN558-1

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Top Connection

    None

    Inspection

    GB/T13927, ISO5028, API598, CJ/T217

    Body Materials

    GG20, GGG40

    Ball Materials

    304, 316

    Canister Materials

    304, 316

    Sealing Materials

    NBR, EPDM

    Features & Benefits

    SA45 has low-pressure intake and exhaust and high-pressure micro exhaust functions with ordinary air valves. Its low-pressure intake and exhaust work when the pipeline pressure is low (such as filling the empty pipe with water, emptying the pipeline, etc.), mainly for a large amount of exhaust and intake under low-pressure conditions; High pressure micro exhaust is used to timely discharge the continuously evolving gas inside the pipeline during normal pressure operation, in order to reduce various adverse consequences that may occur. It also has a waterproof hammer function.

    Industry Options

    MaterialsCharacteristicsLow Temp. ℃High Temp. ℃Recommended ℃
    NRHigh elasticity-2085-5~70
    NBROil resistivity-30100-15~90
    EPDMAging resistance, ozone resistance, corrosion resistance-40125-25~110
    HT EPDMAging resistance, ozone resistance, corrosion resistance, heat resistance-40150-25~135

    Dimensions

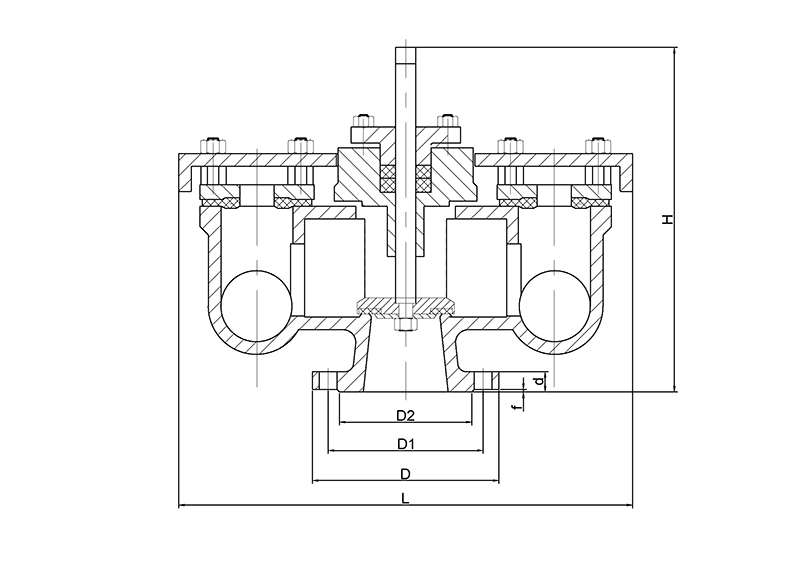

    Flanged Composite Dual Port Exhaust Valve SA45's Drawing
    DNLDD1Hd0n-d
    50345160125315754-14
    80345195160315754-18
    100345215180315758-18
    150475280240380908-23
    200475335295420908-23
