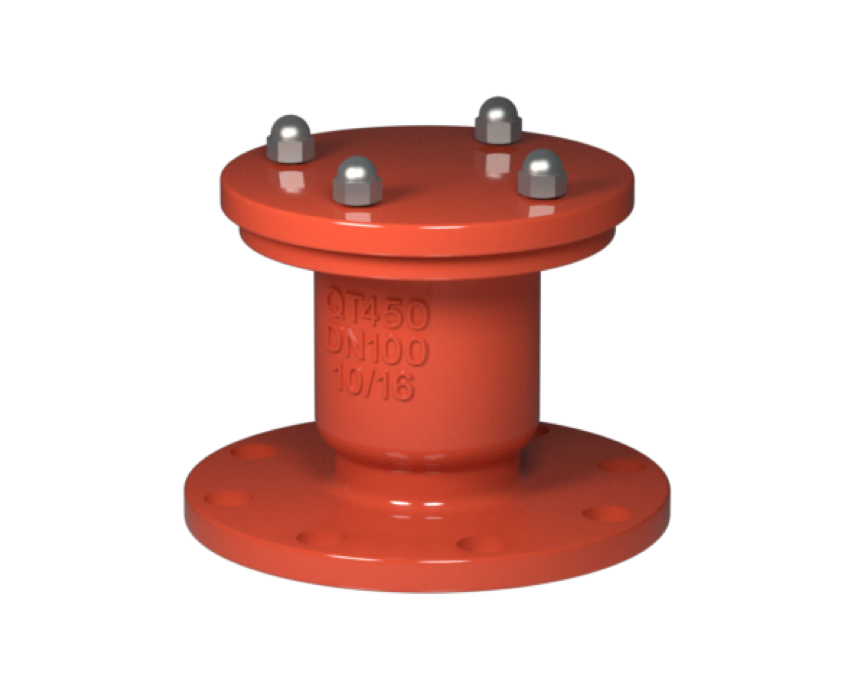

Flanged Single Port Exhaust Valve SA41
DN
50~200 (2"~8")
PN
1.0
Temperature Range
-10°C~80°C
Connection
Flanged
Installation Direction
Unidirectional
Design
CJ/T217, GB/T12227
Face to Face
GB/T12221, BS EN558-1
Flange Drilling
GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259
Top Connection
None
Inspection
GB/T13927, ISO5028, API598, CJ/T217
Body Materials
GG20, GGG40, WCB, CF8, CF8M
Ball Materials
304, 316
Canister Materials
304, 316
Sealing Materials
NBR, EPDM
Features & Benefits
SA41 is suitable for water supply and drainage systems, it is an essential equipment for removing air from pipelines to improve the efficiency of water transportation equipment and protect pipelines from deformation and rupture. 1. It can eliminate gas in the pipeline, feed resistance, and save energy; 2. The exhaust capacity is several times that of a regular dual port exhaust valve; 3. When the pipeline is under negative pressure, this product can quickly and automatically inhale air to prevent pipeline rupture; 4. The floating ball is made of stainless steel, with a long service life, safety and reliability.
Industry Options
| Materials | Characteristics | Low Temp. ℃ | High Temp. ℃ | Recommended ℃ |
| NR | High elasticity | -20 | 85 | -5~70 |
| NBR | Oil resistivity | -30 | 100 | -15~90 |
| EPDM | Aging resistance, ozone resistance, corrosion resistance | -40 | 125 | -25~110 |
| HT EPDM | Aging resistance, ozone resistance, corrosion resistance, heat resistance | -40 | 150 | -25~135 |

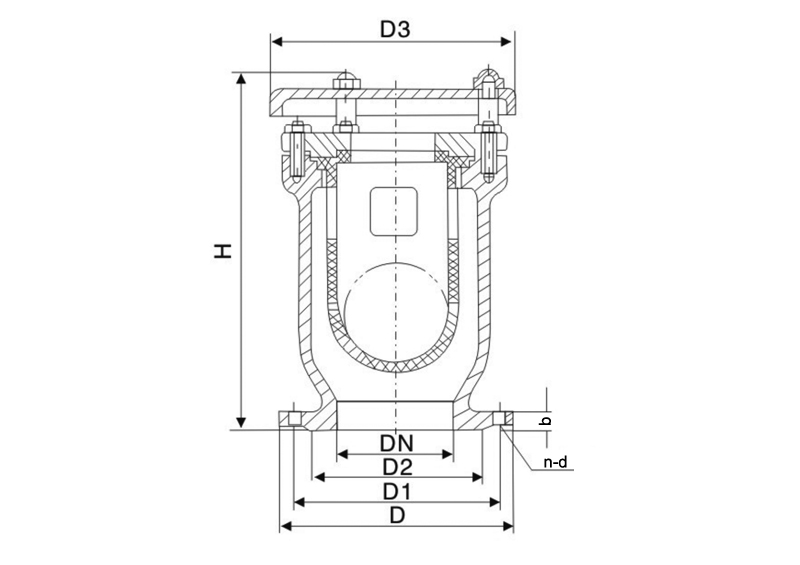

Dimensions
| DN | H | D | D1 | D2 | D3 | n-d |
| 50 | 270 | 160 | 125 | 102 | 175 | 4-14 |
| 80 | 300 | 195 | 160 | 135 | 215 | 4-18 |
| 100 | 310 | 215 | 180 | 158 | 230 | 8-18 |
| 150 | 395 | 280 | 240 | 212 | 265 | 8-23 |
| 200 | 455 | 335 | 295 | 268 | 380 | 8-23 |
