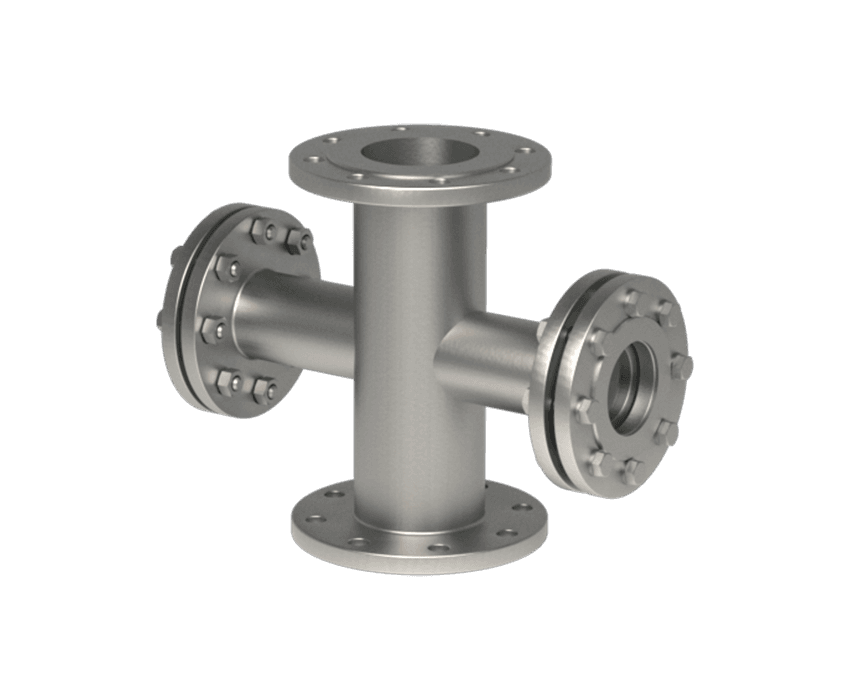

    • Flanged Sight Glass SS41

    DN

    25~150 (1"~6")

    PN

    2.5~6

    Temperature Range

    -59°C~450°C

    Connection

    Flanged, Threaded

    Installation Direction

    Unidirectional, Bidirectional

    Design

    HGS07

    Face to Face

    DIN3202 F6, GB/T12221, EN558-1

    Flange Drilling

    GB/T9113, ASME B16.5, EN1092, GOST12820, GOST33259

    Thread

    GB/T192, GB/T193, NPT, BSP

    Inspection

    GB/T13927, ISO5028, API598, JB/T9092

    Body Materials

    WCB, CF8, CF8M, CF3, CF3M, 321, 316Ti

    Cover Materials

    WCB, CF8, CF8M, CF3, CF3M, 321, 316Ti

    Fastener Materials

    201, 304, 316

    Gasket Materials

    PTFE, Graphite

    Features & Benefits

    SS41 is a sight glass is a transparent or translucent component used in various industrial applications to allow visual inspection of the contents or the flow within a container, pipe, or vessel. It is typically made from glass or a clear plastic material and is installed in a housing or flange that provides a seal against pressure or leaks.

    Industry Options

    MaterialsCrNiMoTiTemp. Range ℃
    WCB0.50.50.2--29~425
    WCC0.50.50.2--29~425
    WC10.350.50.45~0.65-≤455
    WC50.5~0.90.6~10.9~1.2-≤565
    WC61~1.5-0.45~0.65-≤595
    WC92~2.75-0.9~1.2-≤595
    C54~6.5-0.45~0.65-≤650
    CF818~218~110.05-≤458 (540)
    CF8M18~219~132~3-≤425 (540)
    CF317~218~120.5-≤425
    CF3M17~219~132~3-≤455
    32117~199~12-0.5≤540 (700)
    904L19~2124~26---165~600
    316Ti16~1810~14-0.7-165~600
    310S24~2619~22--≤850
    LCB-----46~345
    LCC-----46~345
    LC1-----59~345

    Dimensions

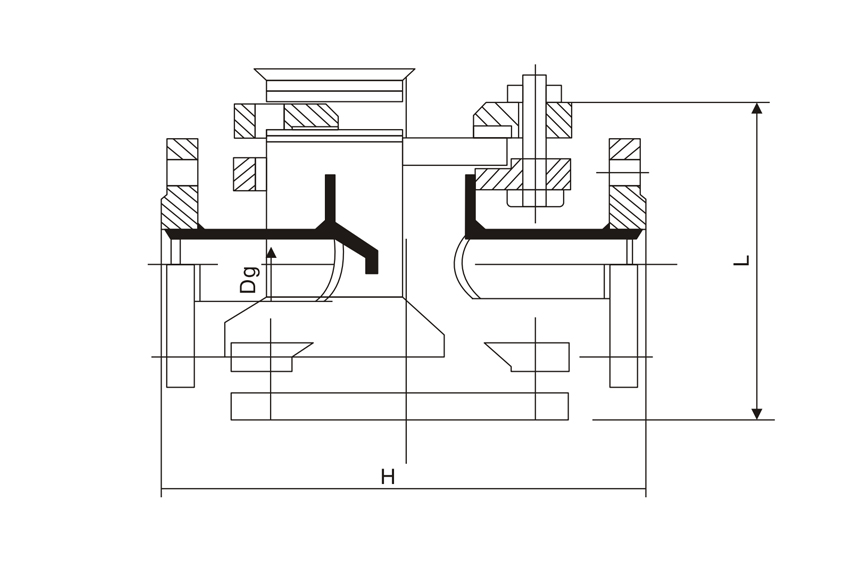

    Flanged Sight Glass SS41's Drawing
    DNHLDgT
    25200 1896510
    32260 2349515
    40260 2349515
    50320 27814020
    65320 27814020
    80360 30816520
    100360 30816520
    125440 36416520
    150440 36416520


    Download

    View 3D models → www.seallon.com → Product Pages → Closer Look

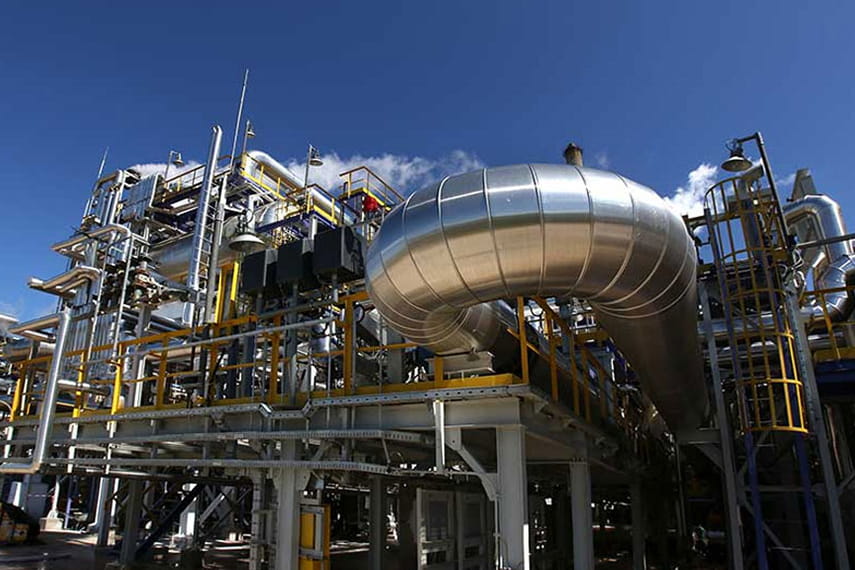

    RELATED CASE
